ACT
Transfer Pump
Features
Three-way, cast iron volute can be rotated for ease of installationModified PPO impeller with stainless steel hub for efficiency and performance
Powered by high quality, industry proven, indoor/outdoor square flange motors
Built-in drain plug for easy winterizing and servicing
Can be mounted in a vertical or horizontal position.
Handles water temperatures up to 60 °C
Pump
pump body: Cast ironImpeller: PPO
Shaft: AISI 304
Motor
C&U bearingMotor with cooper winding
Built-in thermal protected for single phase motor
Insulation class: F
Protection class: IPX4

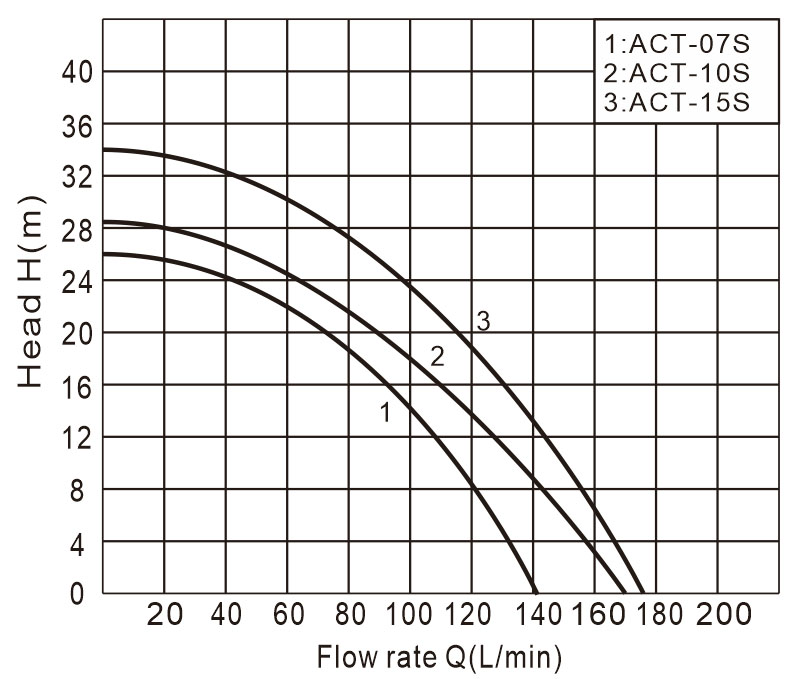

| Model |
Power (HP) |
Max.flow (GPH) |
Max.head (ft) |
Max.suct (ft) |
Intlet/Outlet |
G.W. (kg) |
Packing size (mm) |
QTY/20' (PCS) |
| ACT-07S | 0.75 | 2200 | 85 | 26 | NPT1½"×NPT1" | 16 | 430×240×230 | 1180 |
| ACT-10S | 1 | 2600 | 90 | 26 | NPT1½"×NPT1" | 17 | 430×240×250 | 1085 |
| ACT-15S | 1.5 | 2700 | 115 | 26 | NPT1½"×NPT1" | 19 | 430×240×260 | 1040 |
