CPA25-C
CPA High Energy-efficient Circulator Pumps

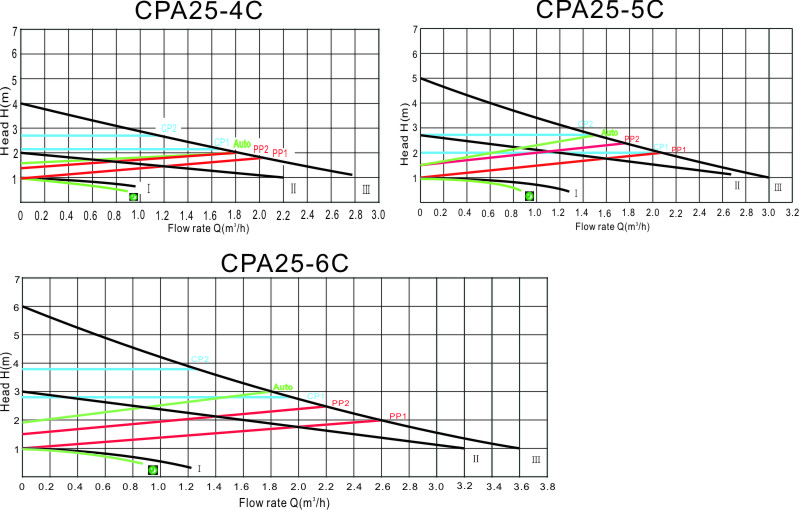

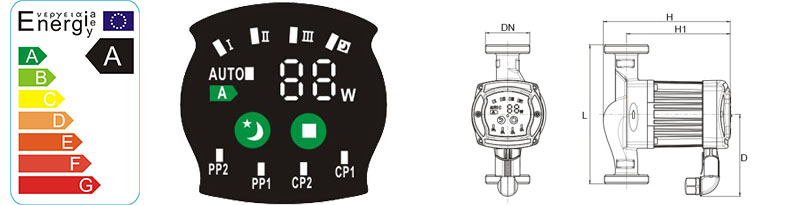

| Model | Power(W) | Max.Flow(L/min) | Max.Head(m) | Inlet/Outlet | Size(mm) | ||||
| L | DN | H | H1 | D | |||||
| CPA25-4C | 22 | 44 | 4 | 1½" | 180 | 47.5 | 165 | 134 | 106 |
| CPA25-5C | 32 | 51 | 5 | 1½" | 180 | 47.5 | 165 | 134 | 106 |
| CPA25-6C | 45 | 60 | 6 | 1½" | 180 | 47.5 | 165 | 134 | 106 |
