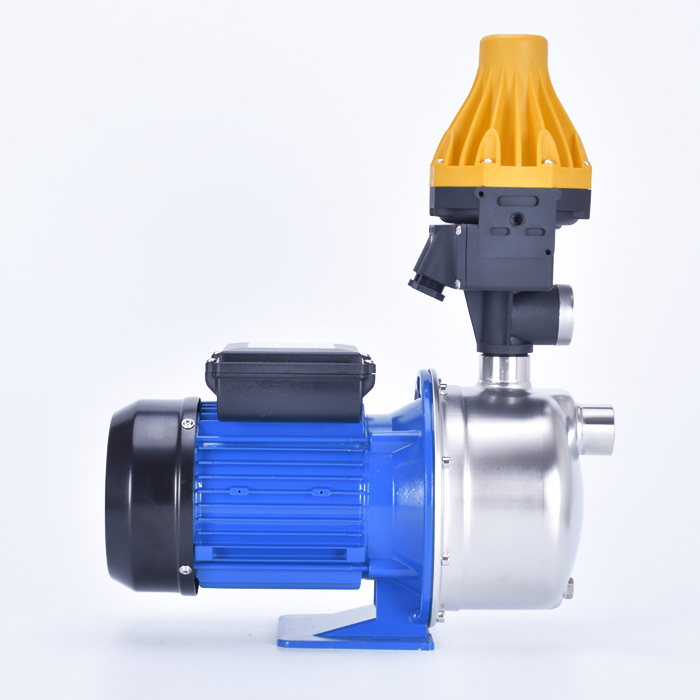

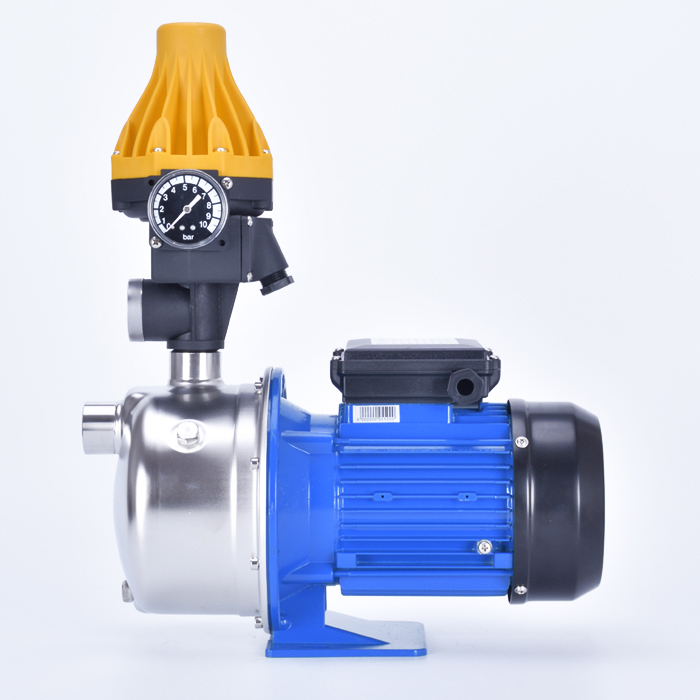

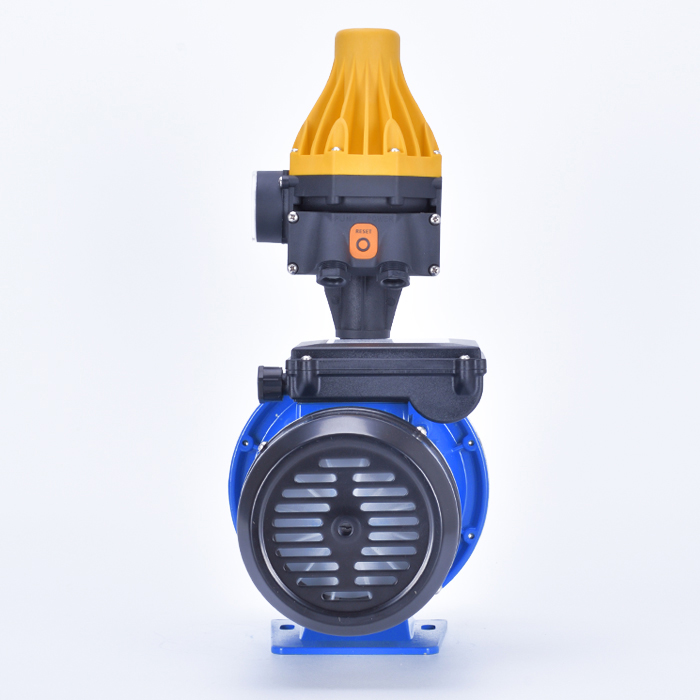

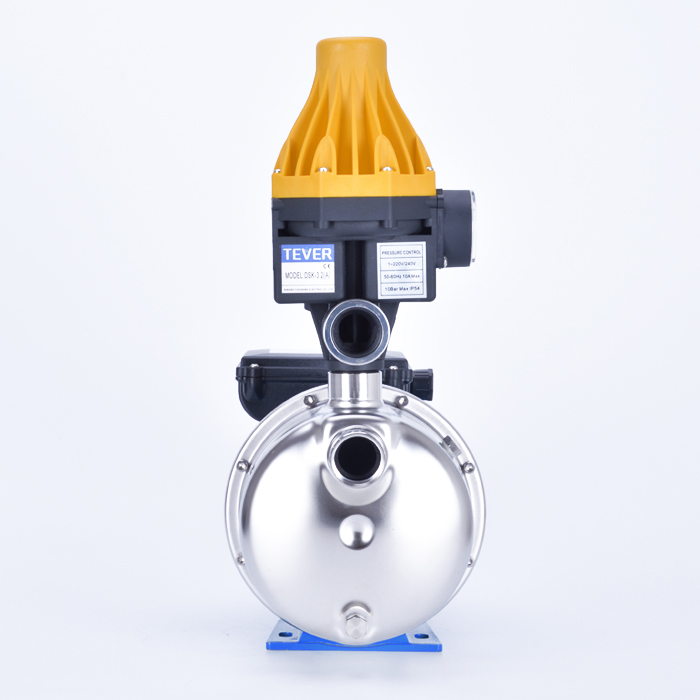

JET-550G1 750G1
household booster pump station
| Model |
Power (kW) |
Current (A) |
Max.head (m) |
Max.flow (m3/h) |
Intlet/Outlet |
G.W. (kg) |
Packing size (mm) |
QTY/20' (PCS) |
| JET-250G1 | 0.37 | 1.9 | 28 | 3.0 | G1"×G1" | 8 | 370 ×350 ×220 | 980 |
| JET-370G1 | 0.37 | 2.4 | 33 | 3.0 | G1"×G1" | 8.5 | 385 ×230 ×405 | 808 |
| JET-550G1 | 0.55 | 3.8 | 35 | 4.0 | G1"×G1" | 10.5 | 375 ×240 ×430 | 750 |
| JET-750G1 | 0.75 | 5.2 | 42 | 4.2 | G1"×G1" | 11.5 | 375 ×240 ×430 | 750 |
| JET-1000G1 | 1.0 | 6.2 | 49 | 4.8 | G1"×G1" | 14.0 | 445 ×250 ×445 | 585 |
