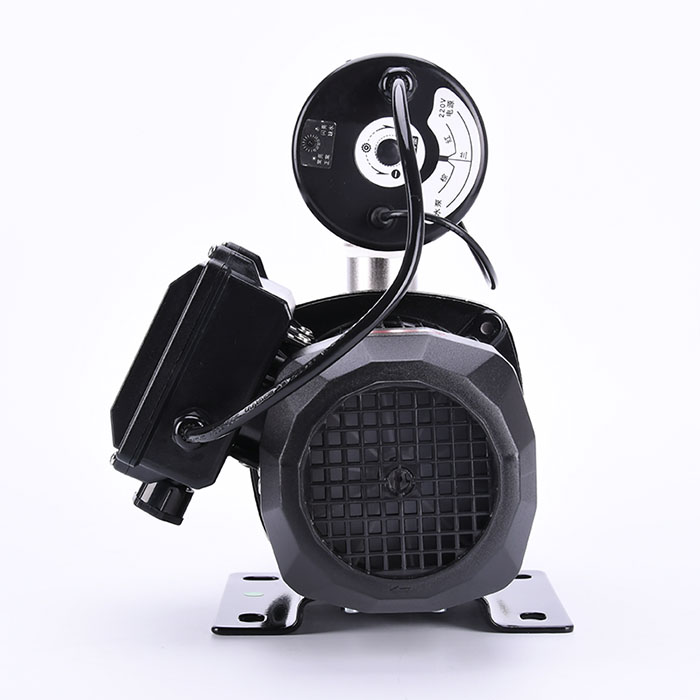

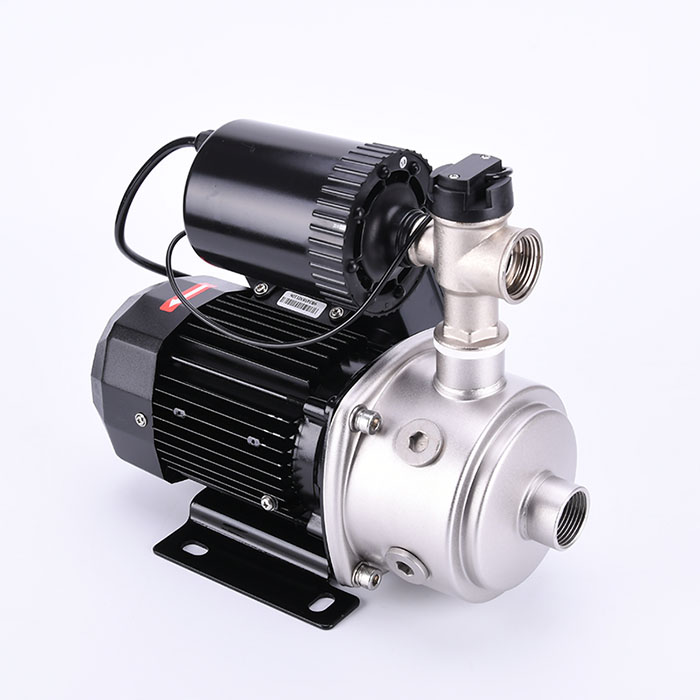

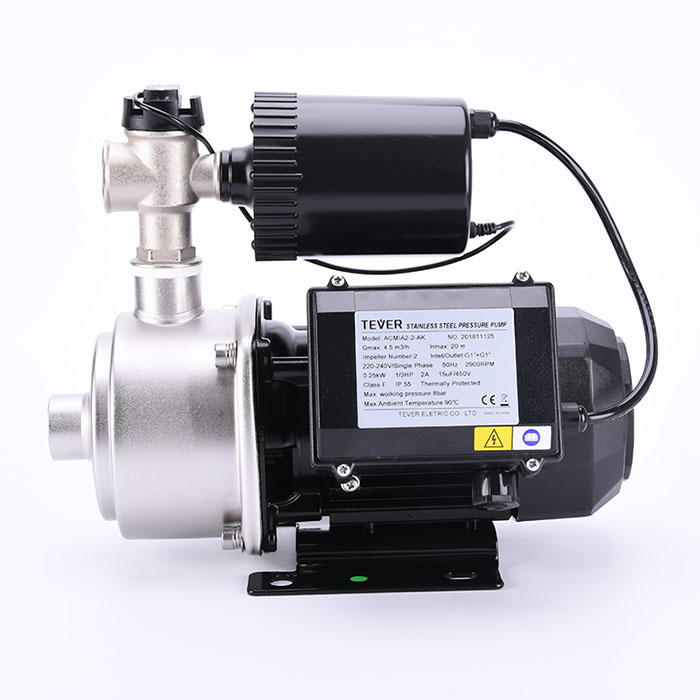

ACMIA-AK
Automatic Pump for Boosting System
20181205174626332633.pdf Features
1. Wet-end of the pump are made of stainless steel304 or316, no rust.
2. Integrating pressure sensors, pressure tank, circuit board, easy to installation.
3. Low noise, Long life.
4. Working pressure is adustable.
Functions
1. Delay to start
2. No water protection and checking
3. Stop when outlet is closed.
4. Automatic booster
5. reset when the power is off.
6. Prevent stuck.
7. Start when the flow is small.
Working Conditions
Liquid temperature:0～+70℃
Ambient temperature:≤50℃
Max.working pressure:1.0MPa
| Model | Power(kW) | Max.head(m) | Max.flow(m3/h) | Inlet/Outlet | Starting Pressure(bar) |
| ACMIA2-2AK | 0.25 | 20 | 4.2 | 1"×1" | ＜1.0 |
| ACMIA2-3AK | 0.37 | 28 | 4.2 | 1"×1" | ＜1.5 |
| ACMIA2-4AK | 0.55 | 37 | 4.2 | 1"×1" | ＜2.5 |
| ACMIA2-5AK | 0.55 | 47 | 4.2 | 1"×1" | ＜3.0 |
| ACMIA2-6AK | 0.75 | 56 | 4.2 | 1"×1" | ＜3.0 |
