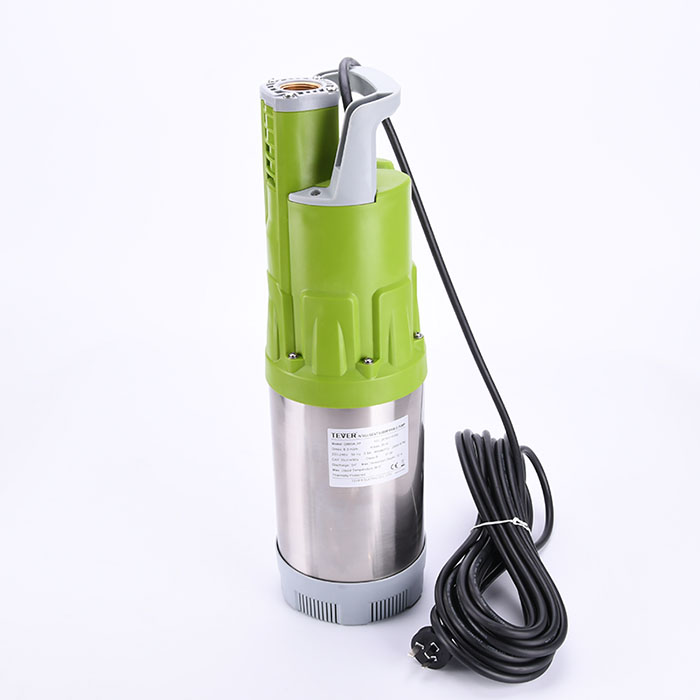

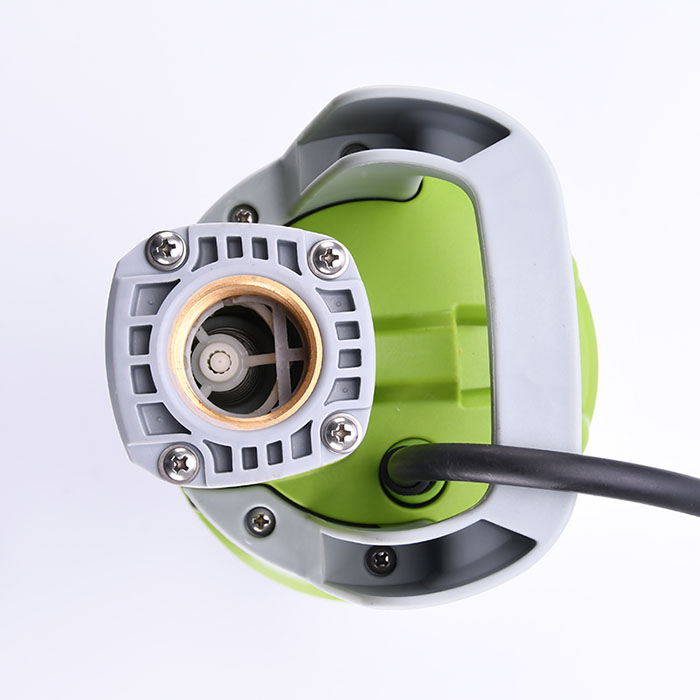

Q800A Q1000A
Automatic Submersible Pump
Features
1. Multi-stage PPO impellers, no rust.2. Integrating pressure switch and non-return valve, easy to installation.
3. Low noise, Long life.
Functions
1. No water protection.2. Automatically restart after water shortage.
3. Automatically stop when the pump reaches the maximum pressure.
4. Automatically restart when the pressure of outlet is low than 1.3-1.6bar.
Working Conditions
Liquid temperature:0～+40℃Maximum particle diameter: 1mm
Max.immersion depth: 12m
| Model | Power(W) | Max.head(m) | Max.flow(m3/h) | Discharge | Starting Level(mm) | Stopping Level(mm) |
| Q800A | 800 | 35 | 6.0 | G1" | 60 | 50 |
| Q1000A | 1000 | 45 | 6.0 | G1" | 60 | 50 |
