CPA15-A
CPA High Energy-efficient Circulator Pumps
| Model | Power(W) | Max.Flow(L/min) | Max.Head(m) | Inlet/Outlet | Size(mm) | ||||||

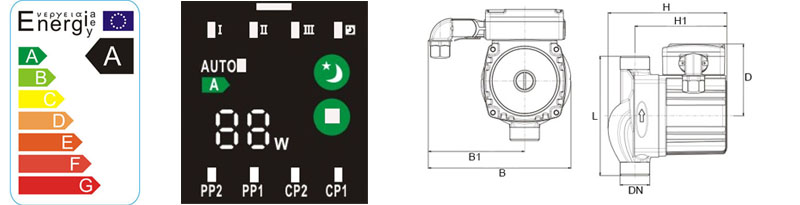

| L | DN | H | H1 | B | B1 | D | |||||
| CPA15-4A | 22 | 30 | 4 | 1" | 130 | 32 | 130 | 100 | 156 | 105 | 78.3 |
| CPA15-6A | 45 | 42 | 6 | 1" | 130 | 32 | 130 | 100 | 156 | 105 | 78.3 |
