CPA32-A
CPA High Energy-efficient Circulator Pumps

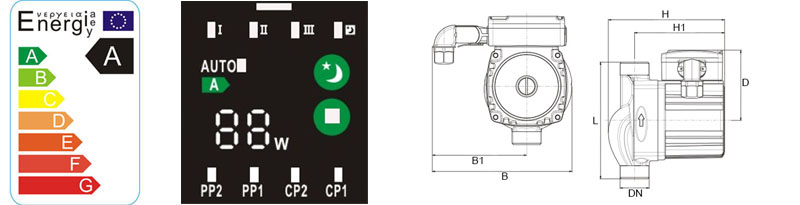

| Model | Power(W) | Max.Flow(L/min) | Max.Head(m) | Inlet/Outlet | Size(mm) | ||||||
| L | DN | H | H1 | B | B1 | D | |||||
| CPA32-4A | 22 | 51 | 4 | 2" | 180 | 59.9 | 131 | 101 | 155 | 105 | 78.3 |
| CPA32-6A | 45 | 60 | 6 | 2" | 180 | 59.9 | 131 | 101 | 155 | 105 | 78.3 |
