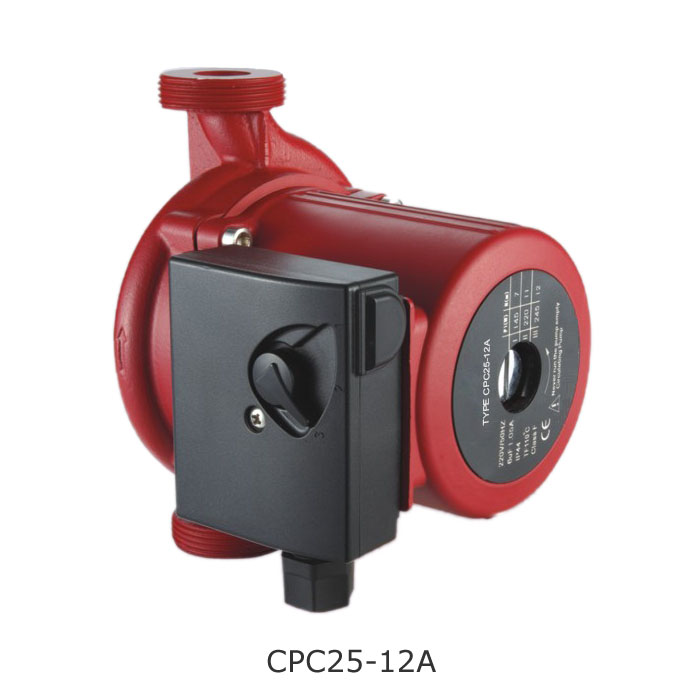

CPC-12A
CPC Three-speed Circulator Pumps

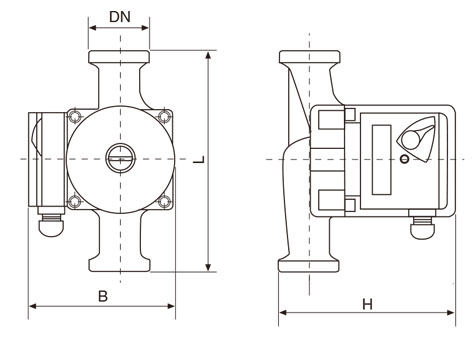

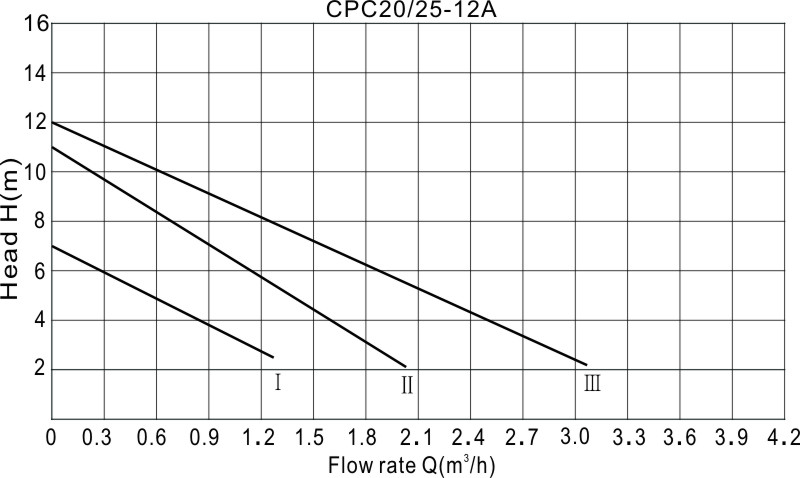

| Model | Power(W) | Max.Flow(L/min) | Max.Head(m) | Inlet/Outlet | N.W(kg) | Size(mm) | |||
| L | DN | H | B | ||||||
| CPC20-12A | 245/220/145 | 52/32/22 | 12/11/7 | 1" | 4.2 | 180 | 32.5 | 152 | 150 |
| CPC25-12A | 245/220/145 | 52/32/22 | 12/11/7 | 1½" | 4.5 | 180 | 47.5 | 160 | 149 |
