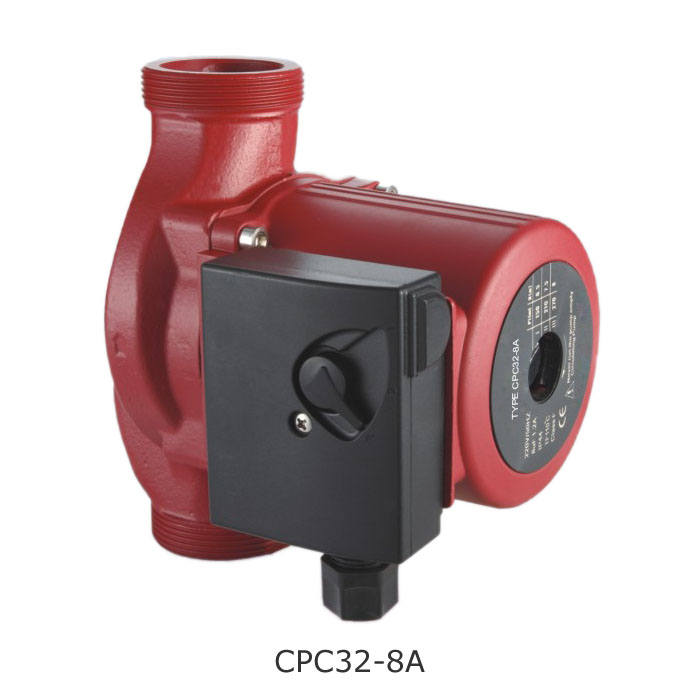

CPC-8A
CPC Three-speed Circulator Pumps

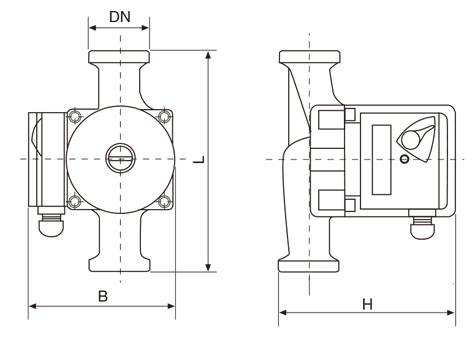

| Model | Power(W) | Max.Flow(L/min) | Max.Head(m) | Inlet/Outlet | N.W(kg) | Size(mm) | |||
| L | DN | H | B | ||||||
| CPC25-8A | 182/170/145 | 115/95/45 | 8/7.5/7 | 1½" | 3.8 | 180 | 47.5 | 155 | 134.5 |
| CPC32-8A | 270/210/150 | 160/103/43 | 8/7.5/6.5 | 2" | 5 | 190 | 59.5 | 172 | 137 |
