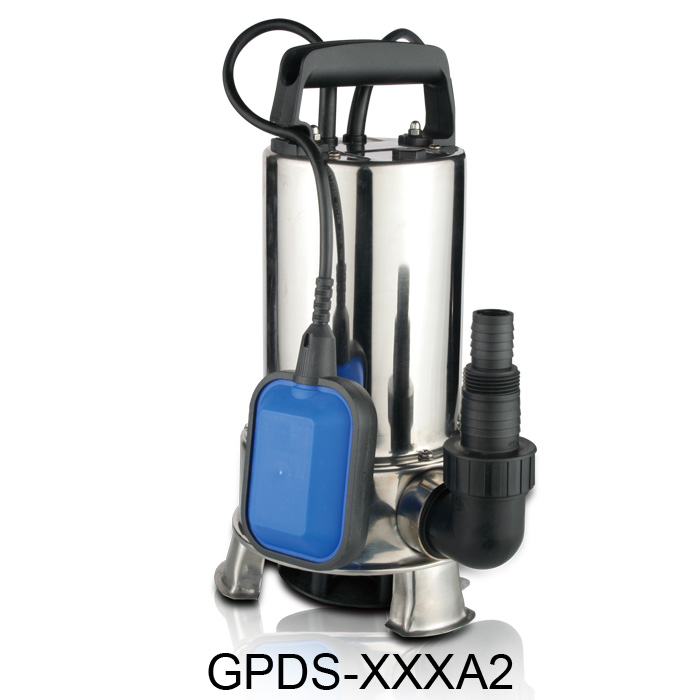

GPDS-XXXA
Dirty Water Pump
Features
The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system.Compare with normal floating switch, it can be used in much smaller space and will not be blocked.
Stainless steel motor shaft.
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li
Main Specifications
Liquid temperature up to 35℃Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 25mm
| Model |
Power (W) |
Max.flow (L/min) |
Max.head (m) |
Dia. of pipe | Cable |
Box (4 in one box) size (cm) |
N.W./G.W. (kg) |
PCS/TEU |
| GPDS-400A1/A2 | 400 | 140 | 6.5 | 1", 1¼", 1½" | H05RN-F 3G0.75MM²×10m | 46×37.5×36 | 19.2/21 | 1800 |
| GPDS-550A1/A2 | 550 | 175 | 7 | 1", 1¼", 1½" | H05RN-F 3G1.0MM²×10m | 46×37.5×36 | 20.4/22.4 | 1800 |
| GPDS-650A1/A2 | 650 | 192 | 7.5 | 1", 1¼", 1½" | H05RN-F 3G1.0MM²×10m | 46×37.5×36 | 20.6/22.6 | 1800 |
| GPDS-750A1/A2 | 750 | 208 | 8 | 1", 1¼", 1½" | H07RN-F 3G1.0MM²×10m | 46×37.5×38.5 | 22.3/25.1 | 1800 |
| GPDS-900A1/A2 | 900 | 233 | 9 | 1", 1¼", 1½" | H07RN-F 3G1.0MM²×10m | 46×37.5×38.5 | 24.3/27.1 | 1800 |
| GPDS-1100A1/A2 | 1100 | 250 | 9.5 | 1", 1¼", 1½" | H07RN-F 3G1.0MM²×10m | 46×37.5×38.5 | 26/28.8 | 1800 |
