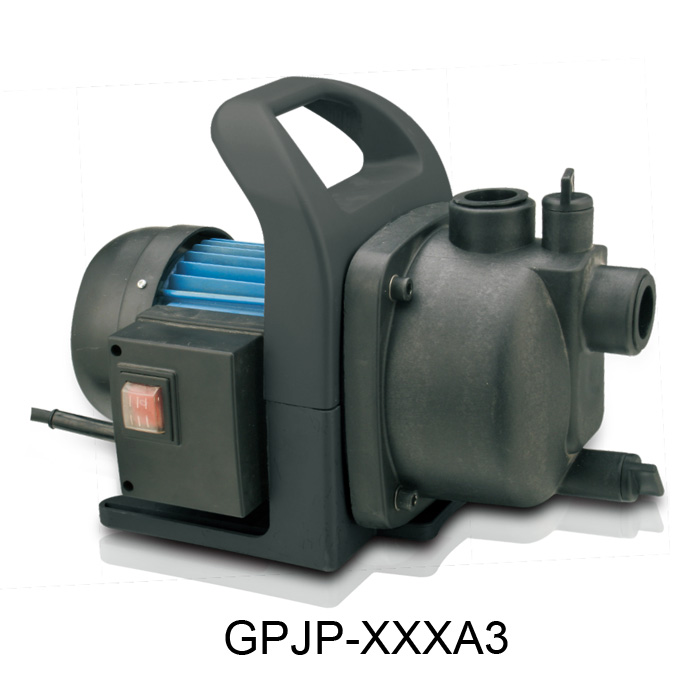

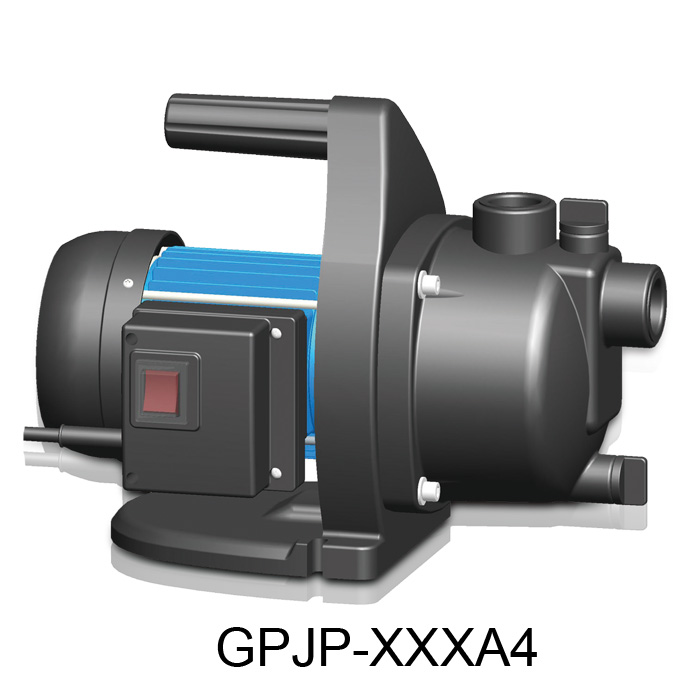

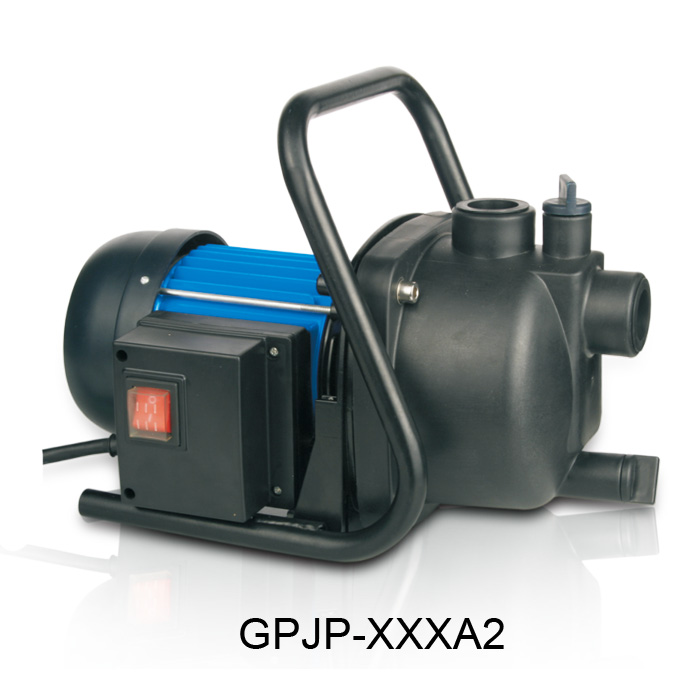

GPJP-XXXA
Garden Jet Pump
Features
Manufactured with non-corrosive and rust proof materialsCorrosion-resistant, reinforced thermoplastic impeller and diffuser
Stainless steel motor shaft
Main Specifications
Liquid temperature up to 35℃Maximum ambient temperature 40℃
Protection class IPX4
| Model |
Power (W) |
Max.flow (L/min) |
Max.head (m) |
Max.suct (m) |
Dia.of pipe | Cable |
Box(4 in one box) size (cm) |
N.W./G.W. (kg) |
PCS/ TEU |
| GPJP-600A1(2/3/4) | 600 | 47 | 35 | 7 | 1" | H07RN-F 3G1.0MM²×1.2m | 35.5×21.5×27 | 6.9/7.3 | 1400 |
| GPJP-800A1(2/3/4) | 800 | 53 | 40 | 8 | 1" | H07RN-F 3G1.0MM²×1.2m | 35.5×21.5×27 | 7.4/7.8 | 1400 |
| GPJP-1000A1(2/3/4) | 1000 | 58 | 44 | 8 | 1" | H07RN-F 3G1.0MM²×1.2m | 35.5×21.5×27 | 7.9/8.3 | 1400 |
| GPJP-1200A1(2/3/4) | 1200 | 63 | 50 | 8 | 1" | H07RN-F 3G1.0MM²×1.2m | 35.5×21.5×27 | 8.4/8.8 | 1400 |
