LPC

Application

It can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
It is suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water or supporting equipment, etc.

Pump

Cast iron pump body and support under special anti-rust treatment
Rust-free copper inserts prevent impeller's block when starting after the pump is unused for a long time
Brass impeller (stainless or plastic)
AISI 304 shaft
Max.liquid temperature: +60℃

Max.suction: +8m

C&U bearing
Motor with cooper winding
Built-in thermal protected for single phase motor
Insulation class: F
Protection class: IPX4

Max. ambient temperature: +40℃

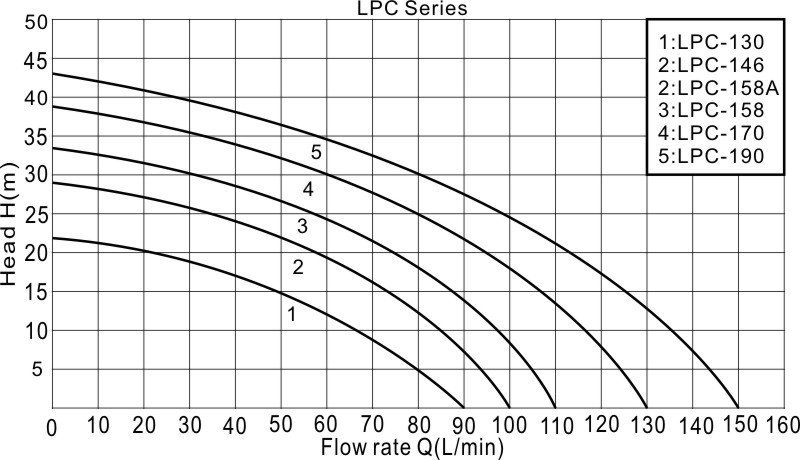

MODEL	POWER			Inlet/Outlet	MAX. FLOW (L/min)	MAX.HEAD (m)	MAX.SUCT (m)	G.W (kg)	QUANTITY (PCS/TEU)
	KW	HP	A
LPC-130	0.37	0.5	2.5	1" , 1"	90	22	8	8	2200
LPC-146	0.55	0.75	4.0	1" , 1"	100	28	8	12	1320
LPC-158	0.75	1	5.5	1" , 1"	110	33	8	13	1320

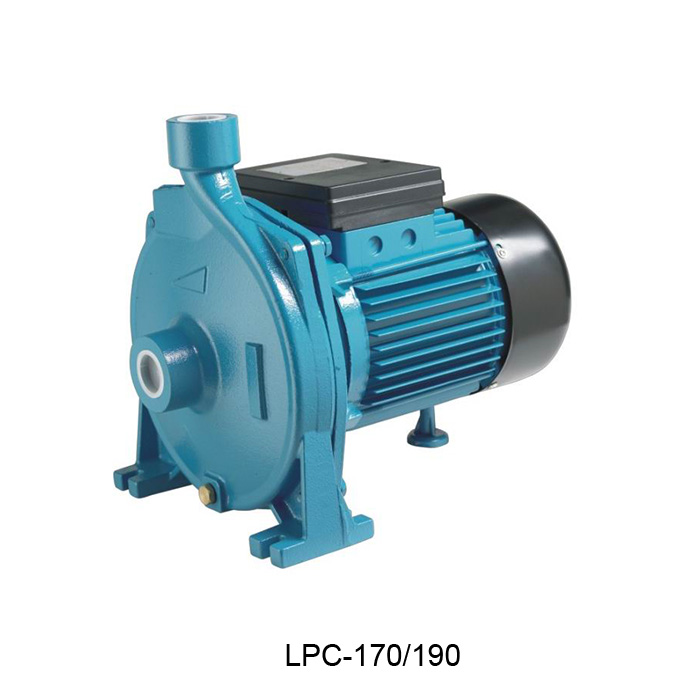

LPC-170	1.1	1.5	7.2	1" , 1"	130	38	8	19	940
LPC-190	1.5	2	9.5	1" , 1"	150	42	8	20.5	870

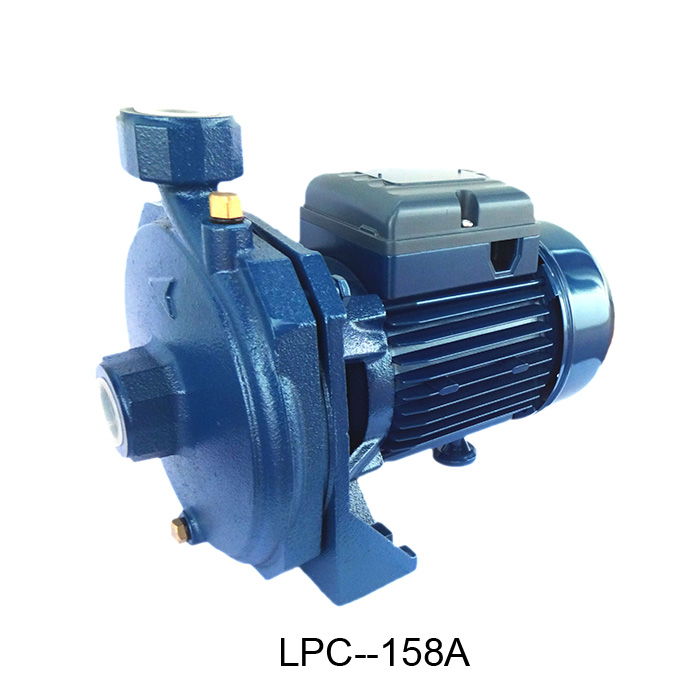

LPC-158A	0.75	1	5.0	1" , 1"	100	29	8	14	1260
