V1100DF V1300DF V1800DF
Application
Waste water drainage in factories, construction and commercial facilitiesDrainage system in municipal sewage treatment plants
Drainage station in residential quarters
Municipal projects
Methane pools and field irrigation in countryside
Operating conditions
Max.Depth:5mMax.fluid temperature:40℃
Liquid PH value:4-10
Liquid kinematic viscosity: 7×10-7--23×10-6 m2/s
Max.liquid density: 1.2×103 kg/m3
Component
Pump body: Cast ironMotor housing: AISI304 SS
Impeller: Cast iron
Motor shaft: Carbon steel
Mechanical seal: Ceramic-Graphite
Cable length: 6m

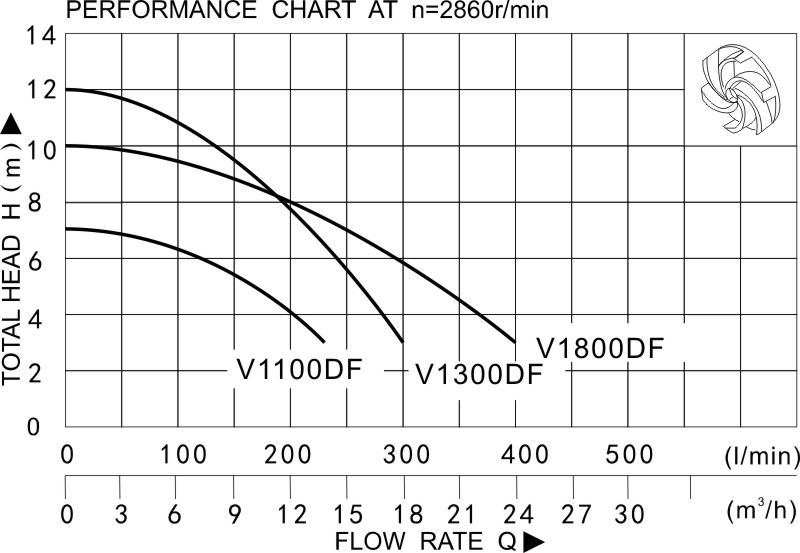

| Model |
Power (kw) |
Outlet Diameter (mm) |
Voltage/Frequency (V/Hz) |
Max.Flow (L/min) |
Max.Head (m) |
G.W. (kg) |
Dimension (cm) |
| V1100DF | 1.1 | 50 | 230/50 | 233 | 7 | 24 | 27.5*22.5*56 |
| V1300DF | 1.3 | 50 | 230/50 | 300 | 12 | 25.2 | 56.5*30.5*24.5 |
| V1800DF | 1.8 | 50 | 230/50 | 400 | 10 | 32.5 | 59*35.5*25 |
