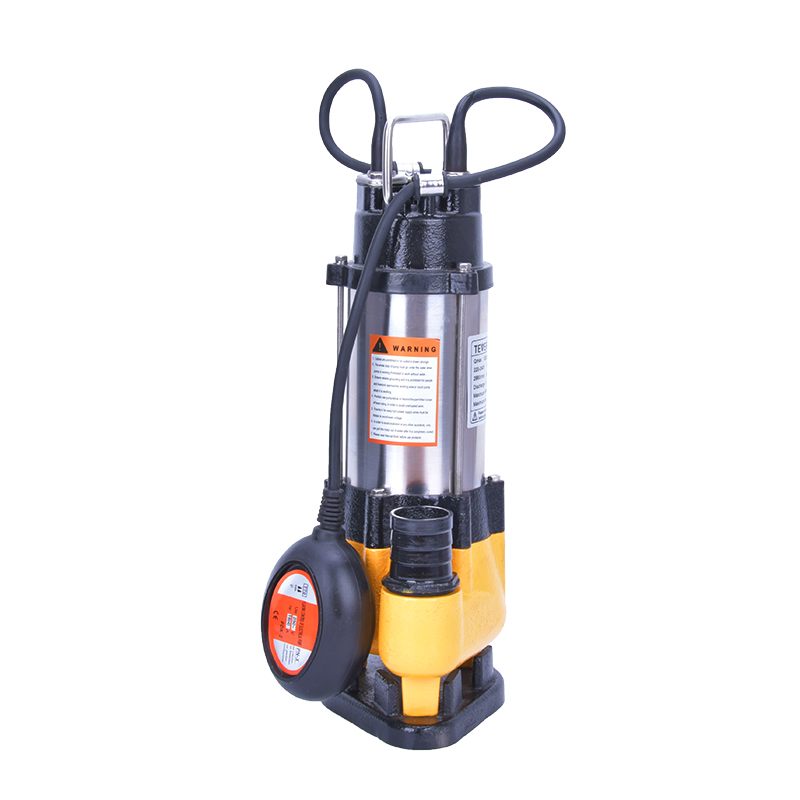

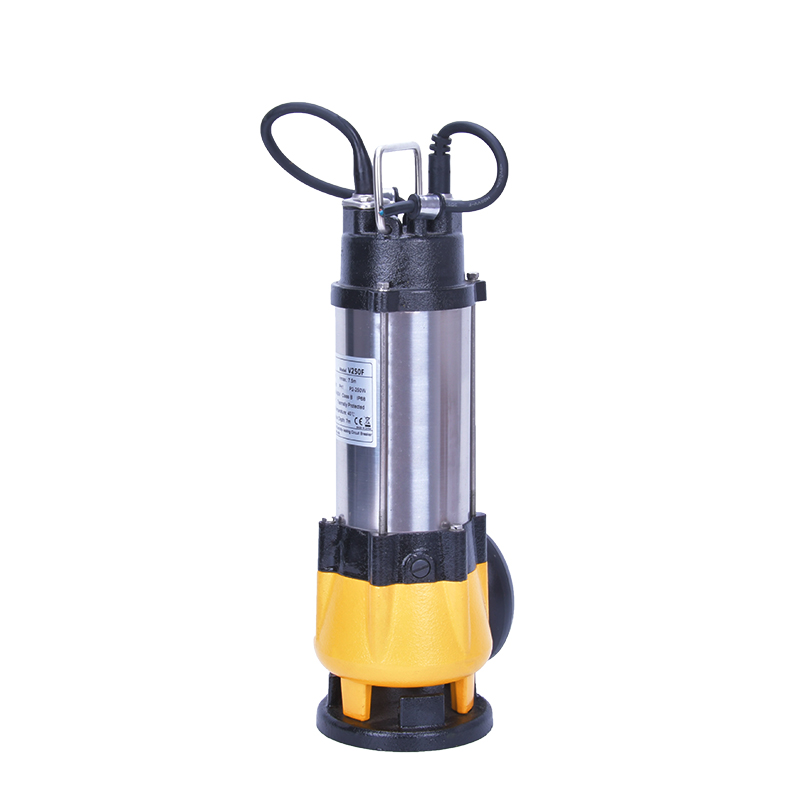

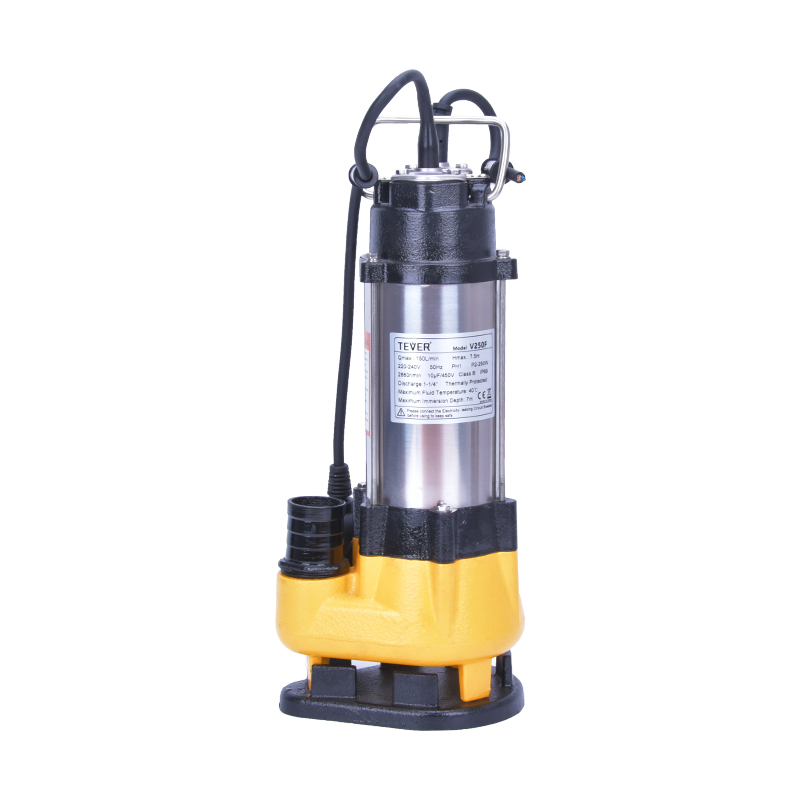

V180F V250F

Application

Waste water drainage in factories, construction and commercial facilities.
Drainage system in municipal sewage treatment plants.
Drainage station in residential quarters.
Municipal projects.
Methane pools and field irrigation in countryside.

Operating conditions

Max.Depth:5m
Max.fluid temperature:40℃
Liquid PH value:4-10
Liquid kinematic viscosity: 7×10^-7--23×10^-6 m²/s
Max.liquid density: 1.2×10³ kg/m³

Component

Pump body: Cast iron
Motor housing: AISI304 SS
Impeller:PA 66, 30%Fiber
Motor shaft: Carbon steel
Mechanical seal: Ceramic-Graphite
Cable length: 5.3m

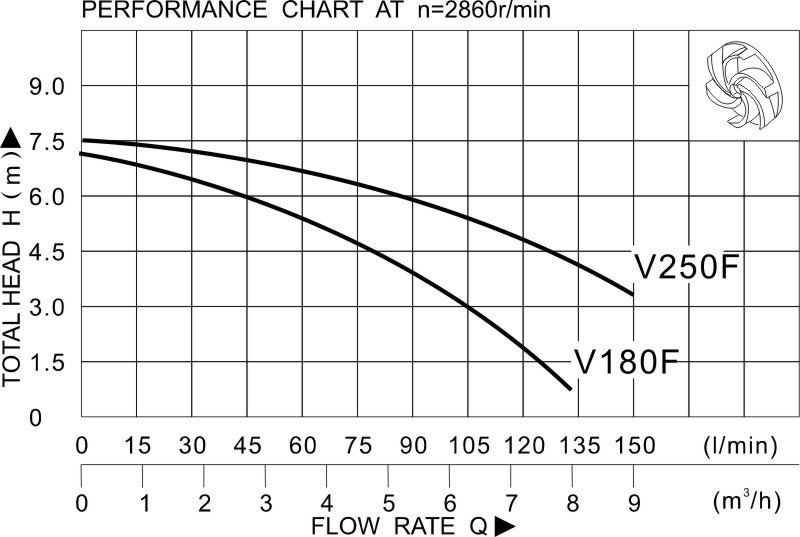

Model	Power (kw)	Outlet Diameter (mm)	Voltage/Frequency (V/Hz)	Max.Flow (L/min)	Max.Head (m)	Max.Diameter of Particle (mm)	G.W. (kg)	Dimension (cm)
V180F	0.18	25/32/40	230/50	133	7	15	9	18.5*18*36.5
V250F	0.25	25/32/40	230/50	150	7.5	15	9.5	18.5*18*38.5
