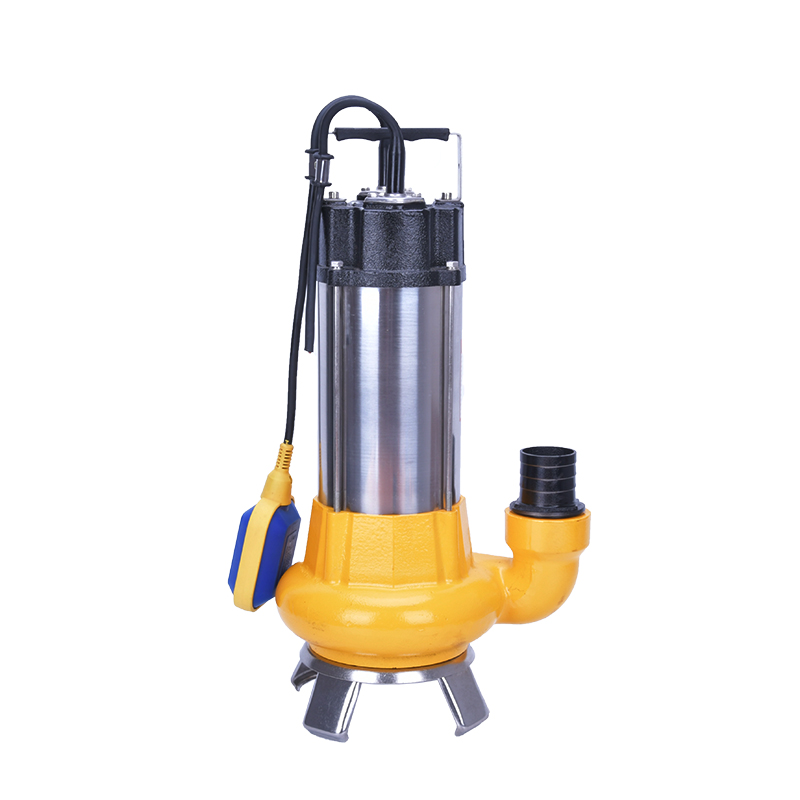

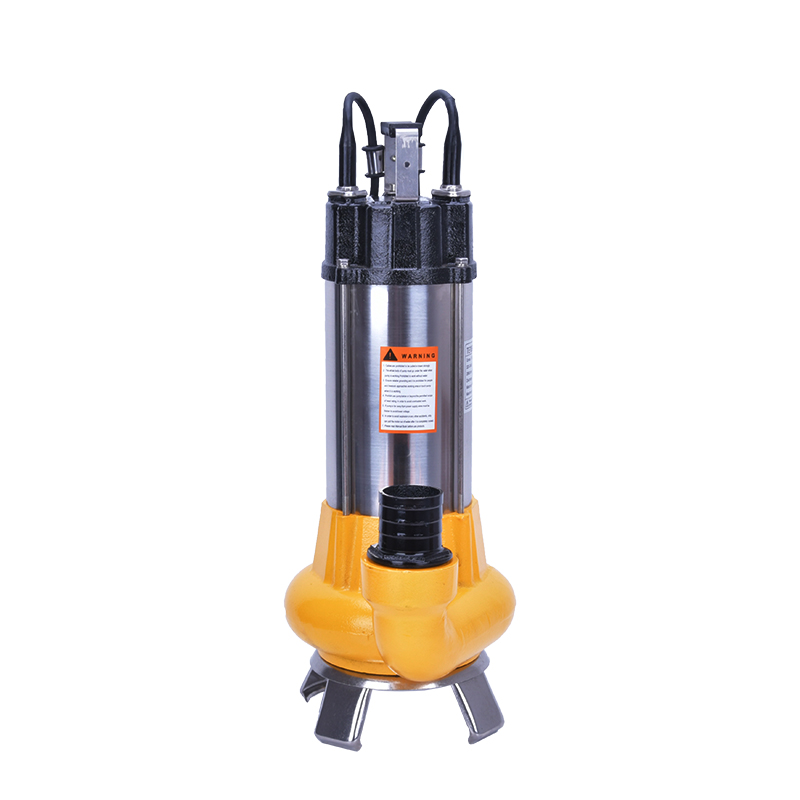

V1100F
Application
Waste water drainage in factories, construction and commercial facilities.Drainage system in municipal sewage treatment plants.
Drainage station in residential quarters.
Municipal projects.
Methane pools and field irrigation in countryside.
Operating conditions
Max.Depth:5mMax.fluid temperature:40℃
Liquid PH value:4-10
Liquid kinematic viscosity: 7×10-7--23×10-6 m2/s
Max.liquid density: 1.2×103 kg/m3
Component
Pump body: Cast ironMotor housing: AISI304 SS
Impeller: Cast iron
Motor shaft: Carbon steel
Mechanical seal: Ceramic-Graphite
Cable length: 6m
| Model |
Power (kw) |
Outlet Diameter (mm) |
Voltage/Frequency (V/Hz) |
Max.Flow (L/min) |
Max.Head (m) |
Max.Diameter of Particle (mm) |
G.W. (kg) |
Dimension (cm) |
| V1100F | 1.1 | 50 | 230/50 | 333 | 9 | 35 | 23.5 | 27.5*22.5*56 |
