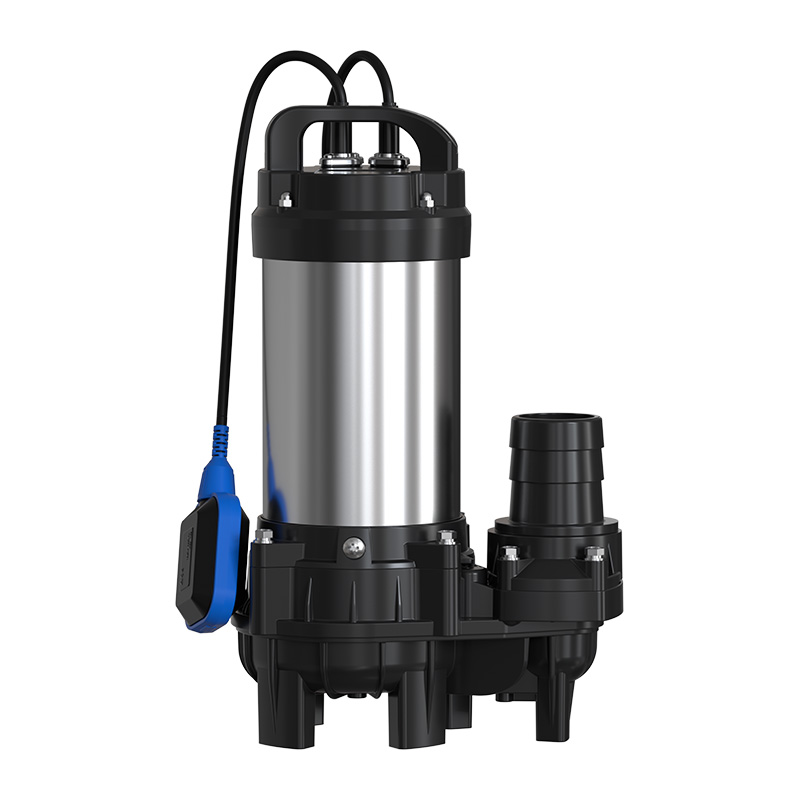

WQ(D)X-P
| Model | Power P2 | Outlet Diameter | Max.Flow | Max.Head | Max.Particle Size | ||
| 1～220-240V |
3～ 380-415V |
Kw | HP | (mm) | (m3/h) | (m) | (mm) |
| 40WQDX8-5-0.25(F/FC)P | 40WQX8-5-0.25P | 0.25 | 0.33 | 40 | 13 | 7 | 35 |
| 50WQDX9-6-0.4(F/FC)P | 50WQX9-6-0.4P | 0.4 | 0.53 | 50 | 16 | 9.5 | 35 |
| 50WQDX12-9-0.75(F/FC)P | 50WQX12-9-0.75P | 0.75 | 1 | 50 | 22 | 12.5 | 35 |
| 80WQDX25-9-1.5(F)P | 80WQX25-9-1.5P | 1.5 | 2 | 80 | 44 | 15 | 46 |
Application
Sewage drainage for buildings
Wastewater transfer in treatment tanks
Water circulation for gardens & ponds
Debris-tolerant rain/spring water pumping
Features
Hermetic cable & thermal protection
High-temp ceramic bearings
Rear-serviceable design
Spring-free double seal
Operating conditions
Max.Depth:5m
Max.fluid temperature:40℃
Liquid PH value:6-8
Max. liquid density: 1.2x103 kg/m3
Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation ClassB
Protection IPX8
