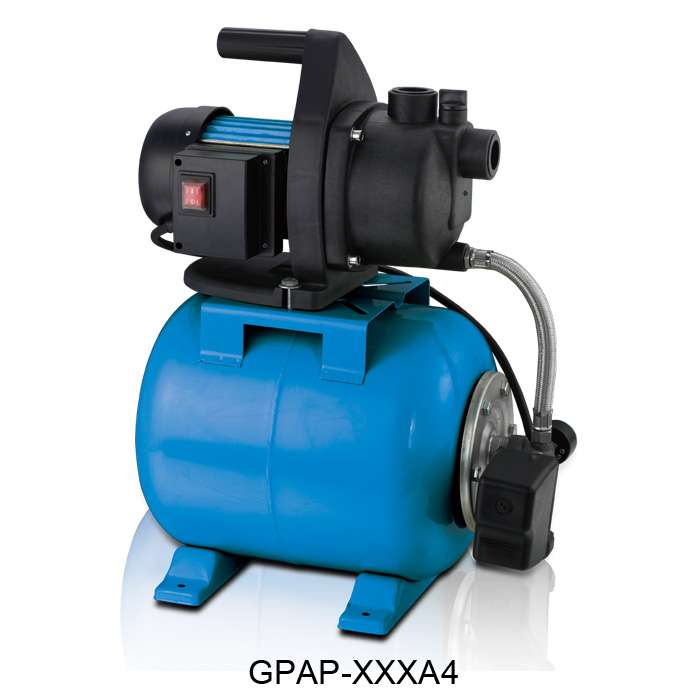

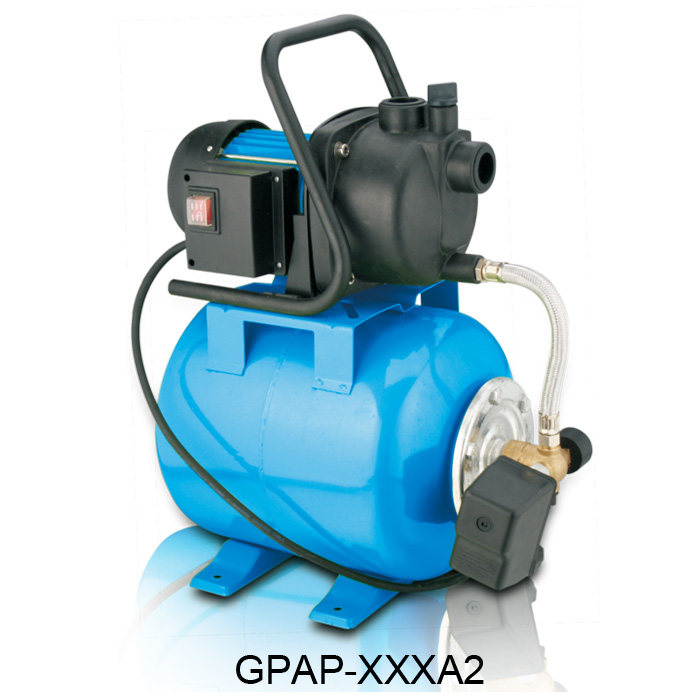

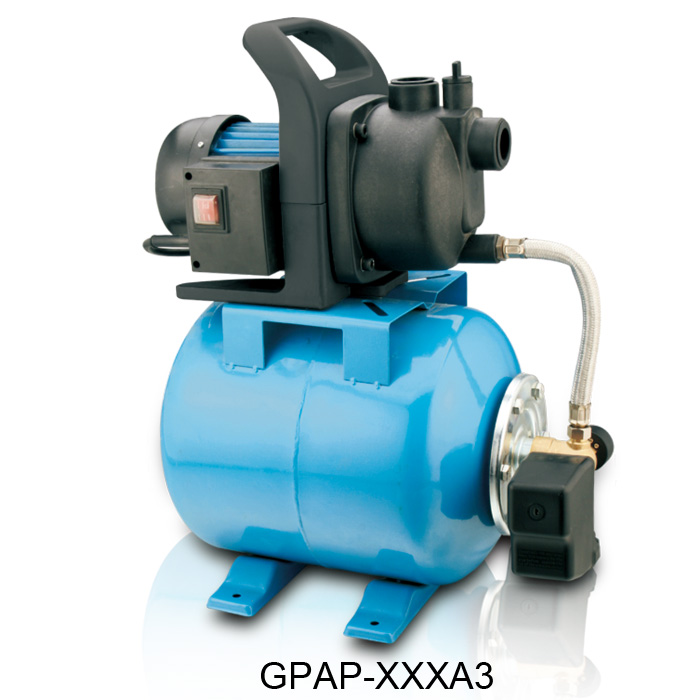

GPAP-XXXA
Automatic Water Supply System
Features
Manufactured with non-corrosive and rust proof materialsCorrosion-resistant, reinforced thermoplastic impeller and diffuser
Stainless steel motor shaft
Main Specifications
Liquid temperature up to 35℃Maximum ambient temperature 40℃
Protection class IPX4
| Model |
Power (W) |
Max.flow (L/min) |
Max.head (m) |
Max.suct (m) |
Dia.of pipe |
Woking pressure (bar) |
Box size (cm) |
N.W./G.W. (kg) |
PCS/TEU |
| GPAP-600A1(2/3/4) | 600 | 47 | 35 | 7 | 1" | 2/3 | 46×28×57 | 11.1/12.4 | 380 |
| GPAP-800A1(2/3/4) | 800 | 53 | 40 | 8 | 1" | 2/3 | 46×28×57 | 11.6/12.9 | 380 |
| GPAP-1000A1(2/3/4) | 1000 | 58 | 44 | 8 | 1" | 2/3 | 46×28×57 | 12.1/13.4 | 380 |
| GPAP-1200A1(2/3/4) | 1200 | 63 | 50 | 8 | 1" | 2/3 | 46×28×57 | 12.6/13.9 | 380 |
