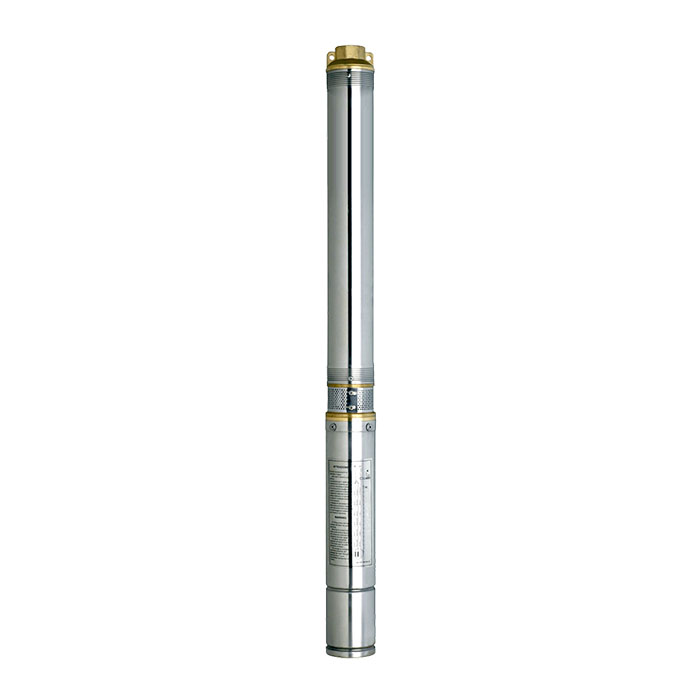

3BP1.5-H

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 3"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

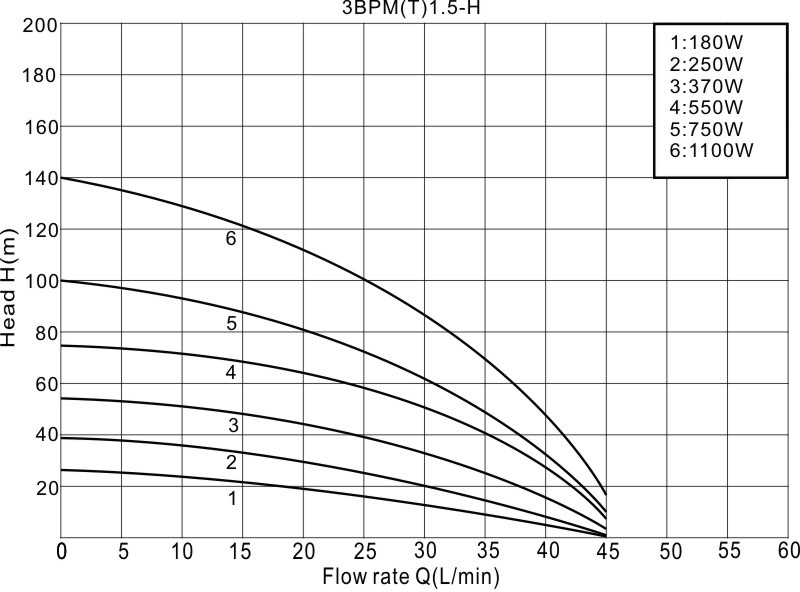

MODEL		POWER		Q(㎥/h）	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
220V/240V	380V/415V	KW	HP	Q(L/min）	0	5	10	15	20	25	30	35	40	45
3BPM1.5/7-H	3BPT1.5/7-H	0.18	0.24	H(m)	27	26	25	23	21	18	15	11	7	3
3BPM1.5/10-H	3BPT1.5/10-H	0.25	0.33		38	37	36	33	30	25	22	16	8	4
3BPM1.5/14-H	3BPT1.5/14-H	0.37	0.5		53	52	51	46	42	35	29	22	11	7
3BPM1.5/20-H	3BPT1.5/20-H	0.55	0.75		75	74	73	66	60	50	43	32	16	8
3BPM1.5/27-H	3BPT1.5/27-H	0.75	1		101	100	99	89	81	68	56	43	21	11
3BPM1.5/37-H	3BPT1.5/37-H	1.1	1.5		139	137	135	122	111	93	78	59	30	15
