4BP4-T

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

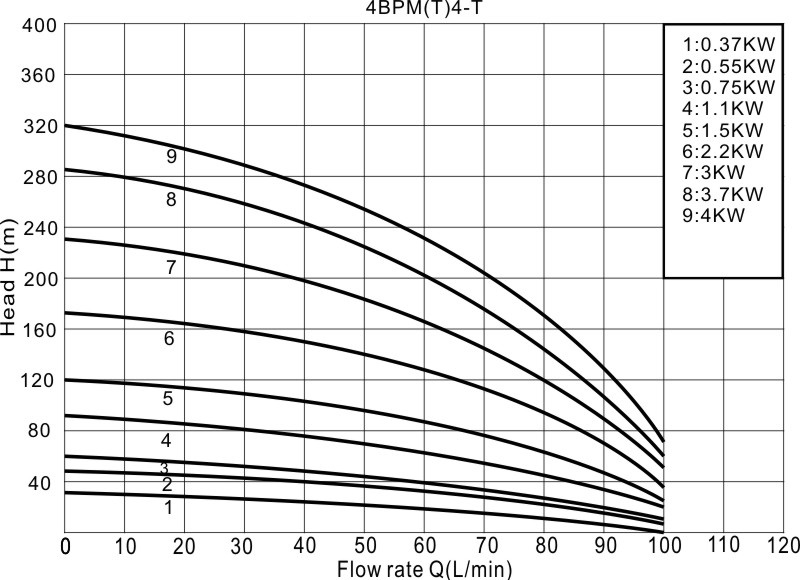

MODEL		POWER		Q(㎥/h）	0	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.6	4.2	4.8	5.4	6	7.2
220V/240V	380V/415V	KW	HP	Q(L/min）	0	15	20	25	30	35	40	45	50	60	70	80	90	100	120
4BPM4/5-T	4BPT4/5-T	0.37	0.5	H(m)	33			29	28	27	26	25	24	21	18	13	8	3
4BPM4/7-T	4BPT4/7-T	0.55	0.75		46			43	42	41	40	39	37	33	28	21	13	7
4BPM4/9-T	4BPT4/9-T	0.75	1		59			55	54	52	51	49	47	43	37	28	20	10
4BPM4/14-T	4BPT4/14-T	1.1	1.5		93			87	86	83	81	79	76	68	58	47	33	20
4BPM4/18-T	4BPT4/18-T	1.5	2		120			113	111	108	105	102	98	88	75	60	42	25
4BPM4/27-T	4BPT4/27-T	2.2	3		175			164	161	157	152	147	141	127	109	87	61	35
	4BPT4/35-T	3	4		231			217	212	208	202	196	189	170	149	120	87	50
	4BPT4/44-T	3.7	5		285			266	260	254	248	238	229	203	172	139	100	59
	4BPT4/48-T	4	5.5		322			299	292	285	278	267	256	231	199	160	118	70
