4BP8-T

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards

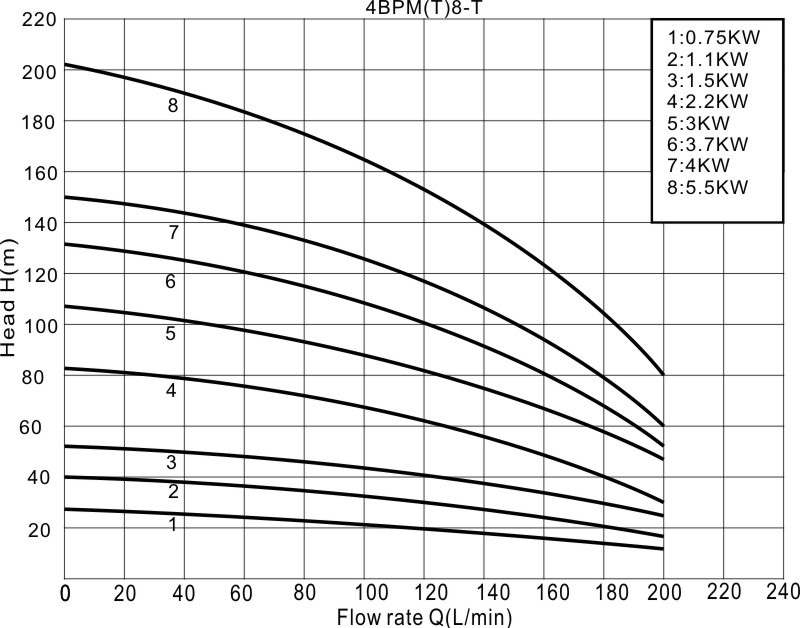

Curve tolerance according to ISO2548

MODEL		POWER		Q(㎥/h)	0	1.8	2.1	2.4	2.7	3	3.6	4.2	4.8	5.4	6	7.2	8.4	9.6	10.8	12	13
220V/240V	380V/415V	KW	HP	Q(L/min)	0	30	35	40	45	50	60	70	80	90	100	120	140	160	180	200	220
4BPM8/4-T	4BPT8/4-T	0.75	1	H(m)	26								24	23	22	21	19	17	15	12
4BPM8/6-T	4BPT8/6-T	1.1	1.5		39								36	35	34	32	29	26	22	17
4BPM8/8-T	4BPT8/8-T	1.5	2		52								48	47	46	43	39	35	29	24
4BPM8/13-T	4BPT8/13-T	2.2	3		82								75	73	71	66	59	50	40	30
	4BPT8/17-T	3	4		108								98	96	94	87	79	70	58	46
	4BPT8/21-T	3.7	5		132								117	114	111	103	93	82	68	52
	4BPT8/23-T	4	5.5		148								134	131	127	118	108	95	79	60
	4BPT8/32-T	5.5	7.5		202								182	178	172	160	143	125	105	80
