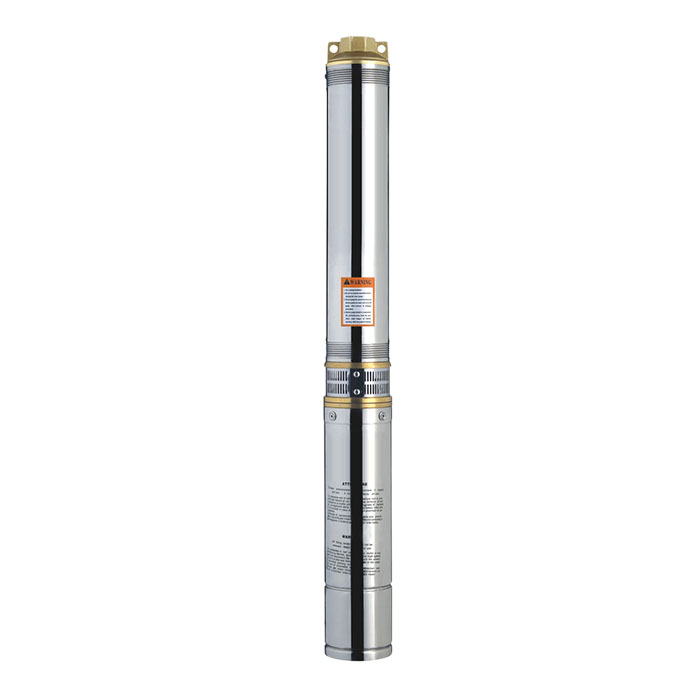

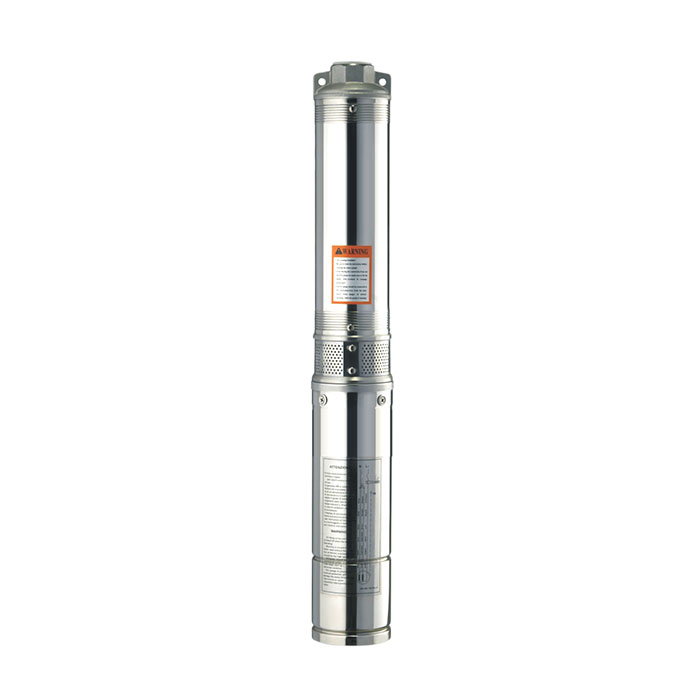

4BP2-H

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

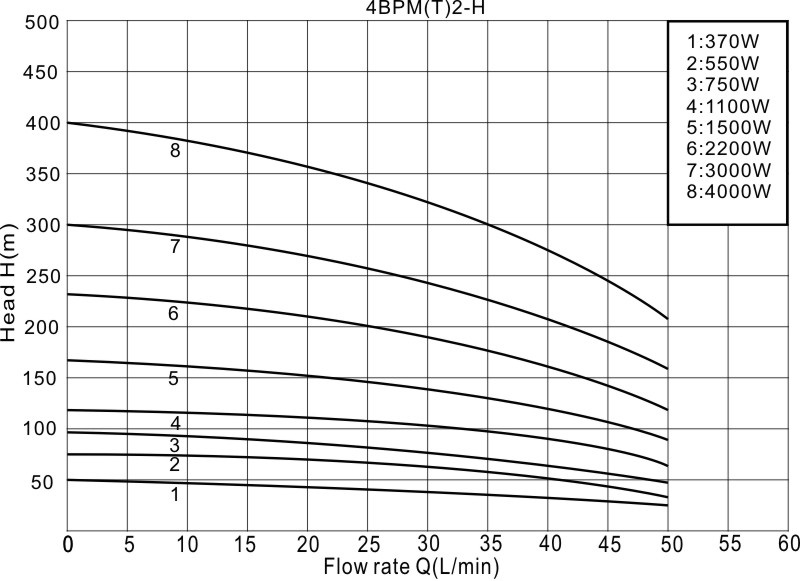

MODEL		POWER		Q(㎥/h）	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
220V/240V	380V/415V	KW	HP	Q(L/min）	0	5	10	15	20	25	30	35	40	45	50
4BPM2/7-H	4BPT2/7-H	0.37	0.5	H(m)	49	48	47	46	45	43	41	39	37	33	26
4BPM2/10-H	4BPT2/10-H	0.55	0.75		70	69	67	66	65	62	59	56	52	48	37
4BPM2/13-H	4BPT2/13-H	0.75	1		91	90	88	86	84	80	77	72	68	62	48
4BPM2/17-H	4BPT2/17-H	1.1	1.5		119	117	115	113	110	105	100	95	89	81	63
4BPM2/23-H	4BPT2/23-H	1.5	2		161	158	156	152	149	142	136	128	120	110	85
4BPM2/32-H	4BPT2/32-H	2.2	3		224	220	217	212	207	197	189	178	167	153	118
	4BPT2/43-H	3	4		301	296	292	285	278	265	254	240	225	206	158
	4BPT2/56-H	4	5.5		392	385	380	371	362	345	331	312	290	268	206
