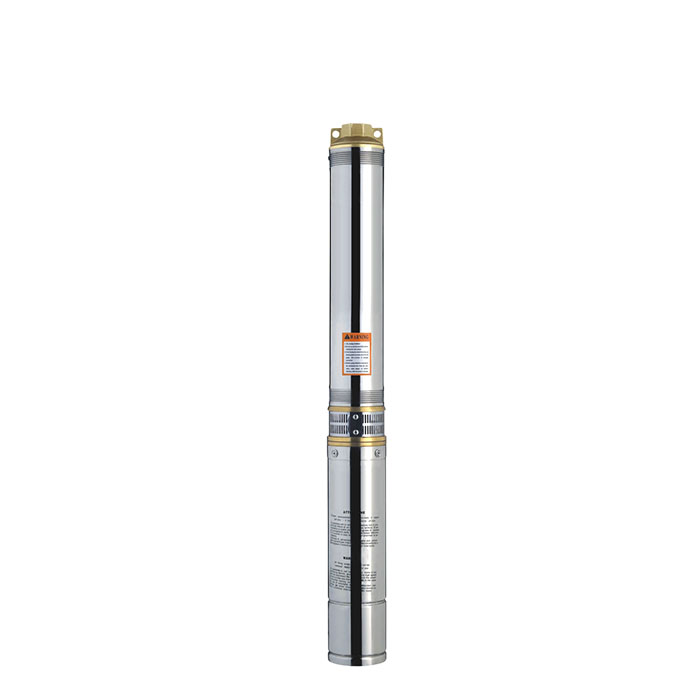

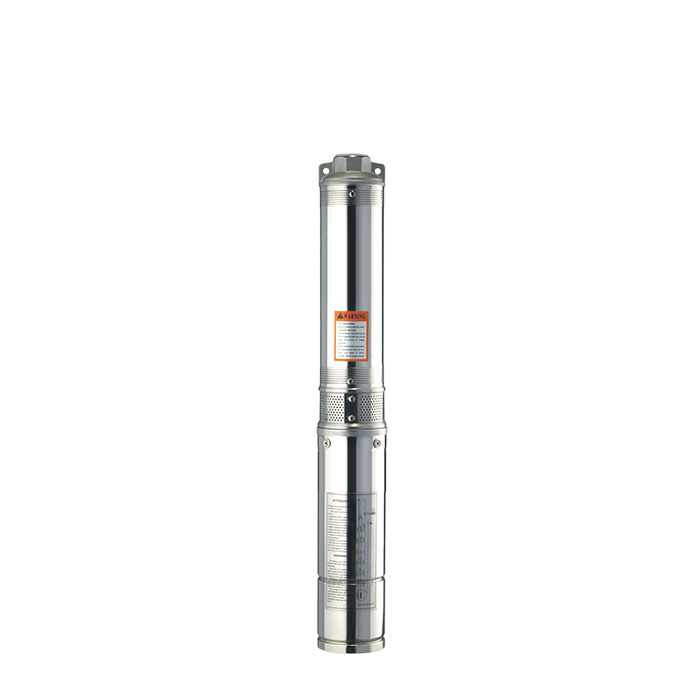

4BP8-H

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

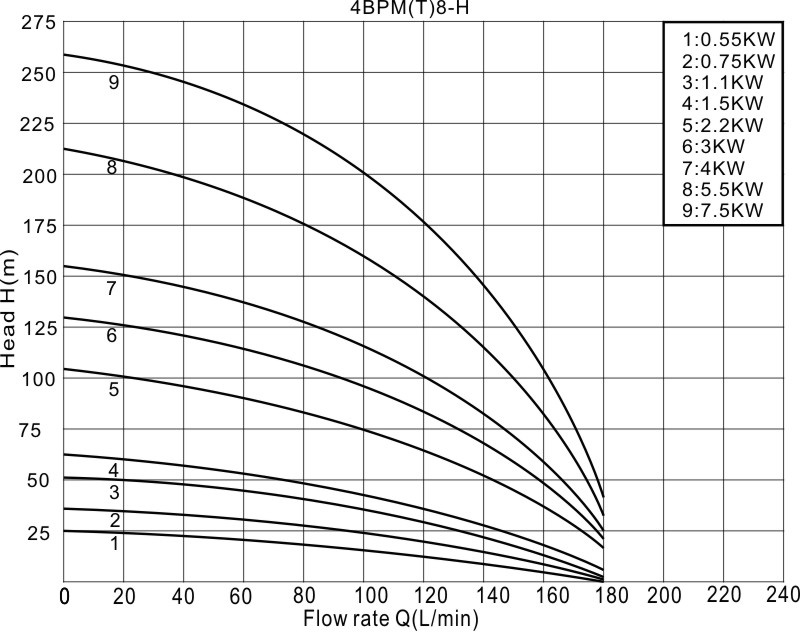

MODEL		POWER		Q(㎥/h）	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
220V/240V	380V/415V	KW	HP	Q(L/min）	0	20	40	60	80	100	120	140	160	180
4BPM8/4-H	4BPT8/4-H	0.55	0.75	H(m)	26	23	23	21	20	19	17	13	9	4
4BPM8/6-H	4BPT8/6-H	0.75	1		39	35	34	32	30	28	25	20	14	6
4BPM8/8-H	4BPT8/8-H	1.1	1.5		52	47	45	43	41	37	33	27	19	8
4BPM8/10-H	4BPT8/10-H	1.5	2		66	58	57	53	51	47	42	33	23	10
4BPM8/16-H	4BPT8/16-H	2.2	3		105	93	91	85	81	75	67	53	37	16
	4BPT8/20-H	3	4		131	117	113	107	102	93	83	67	47	20
	4BPT8/24-H	4	5.5		157	140	136	128	122	112	100	80	56	24
	4BPT8/32-H	5.5	7.5		210	187	181	171	163	149	133	107	75	32
	4BPT8/40-H	7.5	10		262	233	227	213	203	187	167	133	93	40
