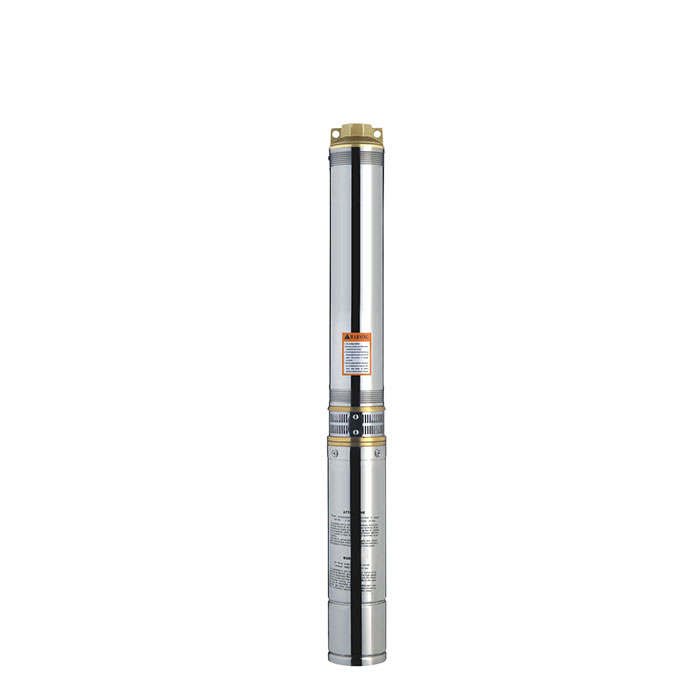

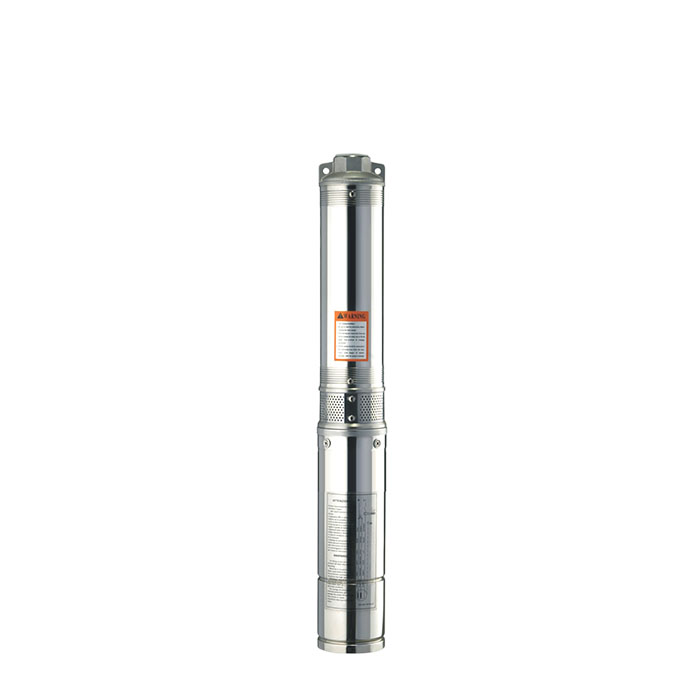

4BP3-H

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

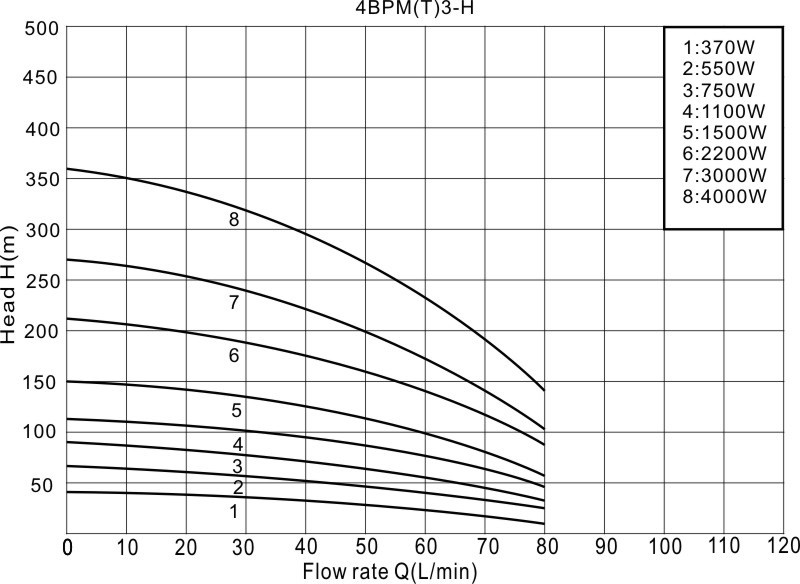

MODEL		POWER		Q(㎥/h）	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
220V/240V	380V/415V	KW	HP	Q(L/min）	0	10	20	30	40	50	60	70	80
4BPM3/5-H	4BPT3/5-H	0.37	0.5	H(m)	41	38	36	35	32	29	26	22	16
4BPM3/8-H	4BPT3/8-H	0.55	0.75		65	62	58	56	51	47	42	35	26
4BPM3/10-H	4BPT3/10-H	0.75	1		82	78	72	70	64	59	52	44	32
4BPM3/14-H	4BPT3/14-H	1.1	1.5		114	109	101	98	89	82	73	61	45
4BPM3/18-H	4BPT3/18-H	1.5	2		147	134	130	126	115	105	94	79	58
4BPM3/26-H	4BPT3/26-H	2.2	3		212	202	188	182	166	152	135	114	83
	4BPT3/33-H	3	4		269	257	238	231	211	193	172	145	105
	4BPT3/44-H	4	5.5		359	342	318	308	281	258	229	193	141
