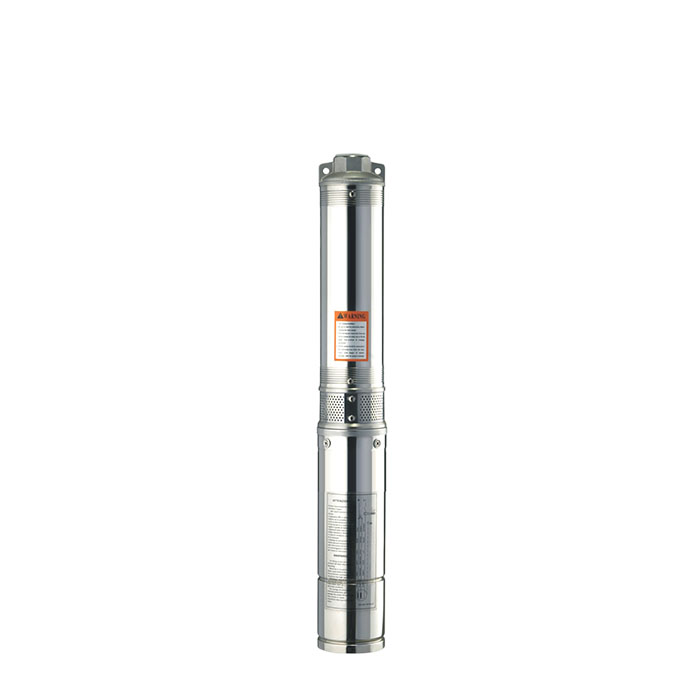

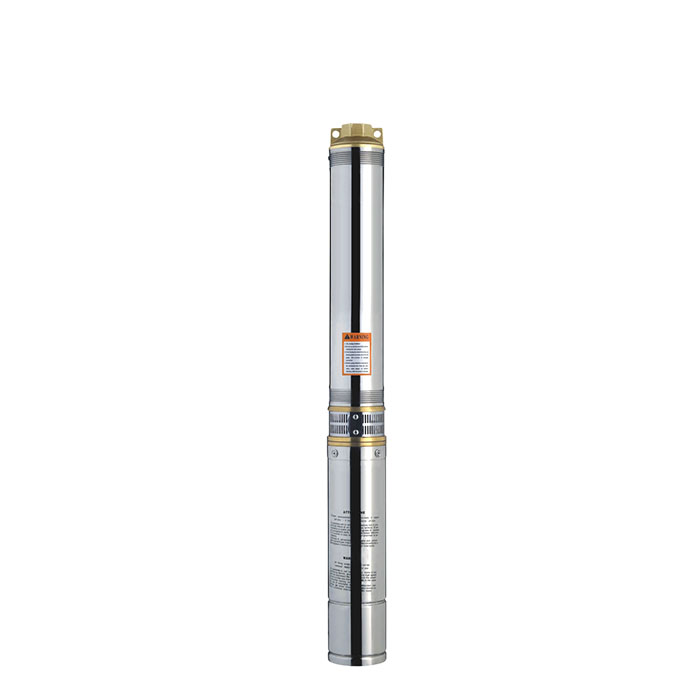

4BP4-H

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

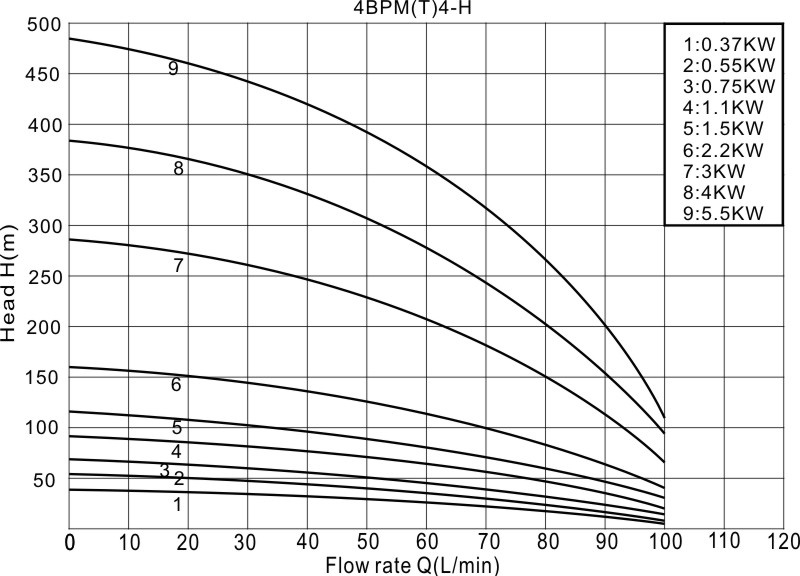

MODEL		POWER		Q(㎥/h）	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6
220V/240V	380V/415V	KW	HP	Q(L/min）	0	10	20	30	40	50	60	70	80	90	100
4BPM4/5-H	4BPT4/5-H	0.37	0.5	H(m)	37	35	34	33	32	30	27	23	19	14	9
4BPM4/7-H	4BPT4/7-H	0.55	0.75		52	49	48	46	45	42	38	33	27	20	12
4BPM4/9-H	4BPT4/9-H	0.75	1		67	63	62	60	57	54	49	43	34	25	16
4BPM4/12-H	4BPT4/12-H	1.1	1.5		89	85	82	80	76	72	66	57	46	34	21
4BPM4/16-H	4BPT4/16-H	1.5	2		118	113	110	106	101	96	87	76	61	45	28
4BPM4/22-H	4BPT4/22-H	2.2	3		163	155	151	146	140	132	120	104	84	62	38
	4BPT4/38-H	3	4		281	268	261	252	241	228	207	180	145	107	66
	4BPT4/51-H	4	5.5		378	359	350	338	323	306	278	241	195	144	88
	4BPT4/65-H	5.5	7.5		481	458	446	431	412	390	355	308	248	183	112
