4BP-N

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

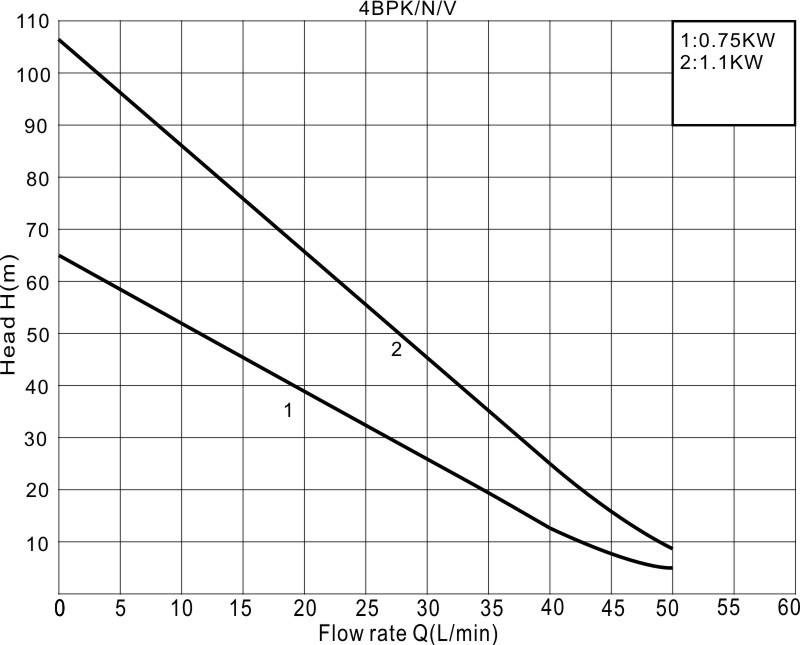

MODEL		POWER		Q(㎥/h）	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
220V/240V	380V/415V	KW	HP	Q(L/min)	0	5	10	15	20	25	30	35	40	45	50
4BPM100-N	4BPT100-N	0.75	1	H(m)	64	58	52	46	39	33	26	19	13	9	5
4BPM150-N	4BPT150-N	1.1	1.5		107	98	88	78	68	57	46	34	24	16	9
