4BP2-P

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

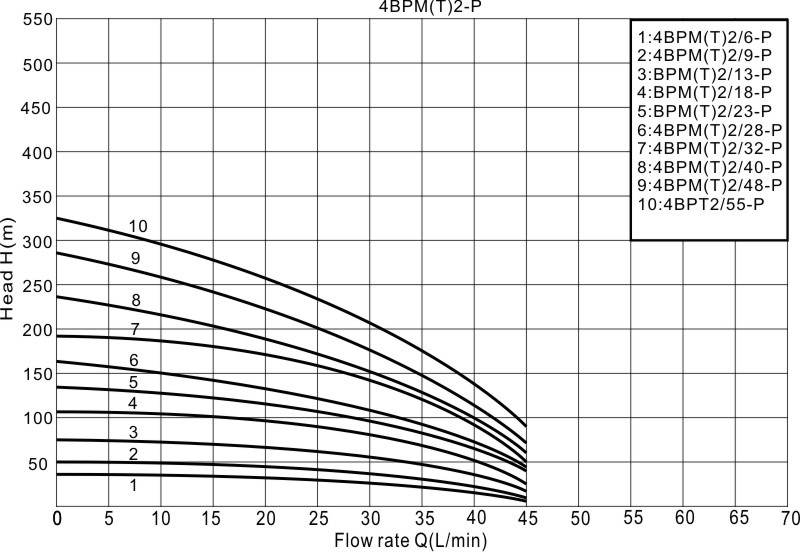

MODEL		POWER		Q(㎥/h）	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
220V/240V	380V/415V	KW	HP	Q(L/min）	0	5	10	15	20	25	30	35	40	45
4BPM2/6-P	4BPT2/6-P	0.37	0.5	H(m)	36	35	33	32	31	28	25	21	16	9
4BPM2/9-P	4BPT2/9-P	0.37	0.5		53	52	50	48	46	43	38	32	24	14
4BPM2/13-P	4BPT2/13-P	0.55	0.75		77	75	73	70	66	61	55	46	35	20
4BPM2/18-P	4BPT2/18-P	0.75	1		107	104	100	97	92	85	76	63	48	28
4BPM2/23-P	4BPT2/23-P	1.1	1.5		136	133	128	123	117	109	97	81	61	36
4BPM2/28-P	4BPT2/28-P	1.5	2		166	161	156	150	143	132	118	99	74	43
4BPM2/32-P	4BPT2/32-P	1.5	2		190	184	179	172	163	151	135	1136	85	49
4BPM2/40-P	4BPT2/40-P	2.2	3		237	231	223	215	204	189	169	141	106	62
4BPM2/48-P	4BPT2/48-P	2.2	3		285	277	268	257	244	227	202	169	127	74
	4BPT2/55-P	3	4		326	317	307	295	280	260	232	194	146	85
