4BP2-R

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

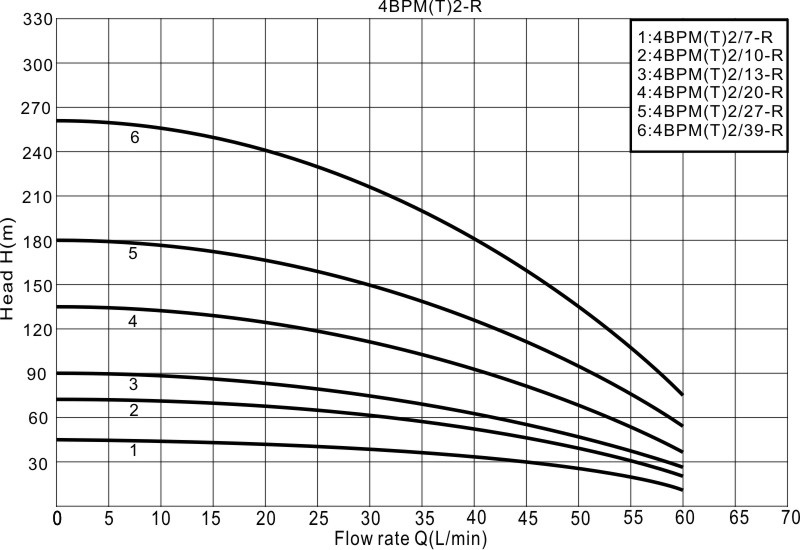

MODEL		POWER		Q(㎥/h）	0	0.6	1.2	1.8	2.4	3	3.6
220V/240V	380V/415V	KW	HP	Q(L/min)	0	10	20	30	40	50	60
4BPM2/7-R	4BPT2/7-R	0.37	0.5	H(m)	48	46	44	39	33	25	14
4BPM2/10-R	4BPT2/10-R	0.55	0.75		70	68	63	57	48	36	20
4BPM2/13-R	4BPT2/13-R	0.75	1		90	88	82	74	62	46	26
4BPM2/20-R	4BPT2/20-R	1.1	1.5		135	130	122	111	93	71	39
4BPM2/27-R	4BPT2/27-R	1.5	2		180	173	164	150	126	96	52
4BPM2/39-R	4BPT2/39-R	2.2	3		260	250	238	216	183	138	75
