4BP8-P

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

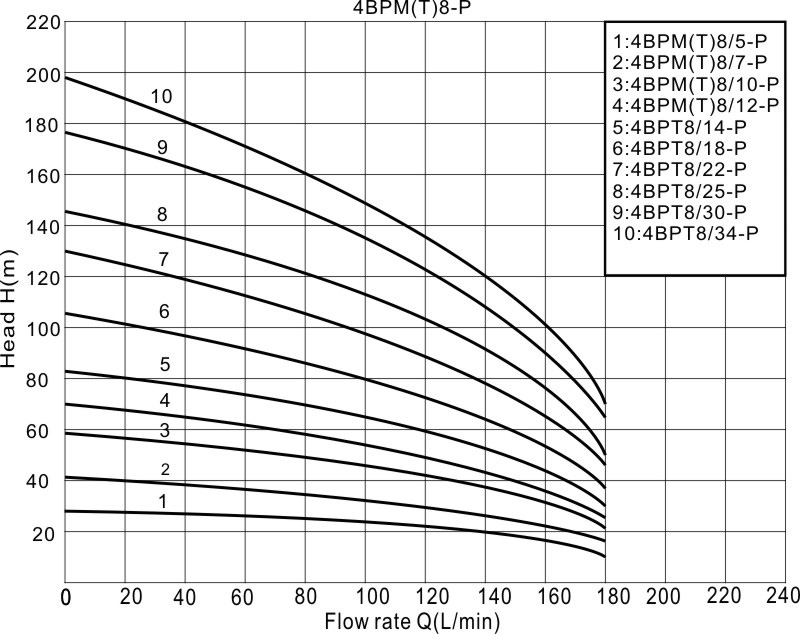

MODEL		POWER		Q(㎥/h）	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
220V/240V	380V/415V	KW	HP	Q(L/min）	0	20	40	60	80	100	120	140	160	180
4BPM8/5-P	4BPT8/5-P	0.75	1	H(m)	29	28	27	25	24	22	21	19	15	10
4BPM8/7-P	4BPT8/7-P	1.1	1.5		41	39	37	35	33	31	29	26	21	15
4BPM8/10-P	4BPT8/10-P	1.5	2		59	56	53	50	47	45	41	37	30	21
4BPM8/12-P	4BPT8/12-P	2.2	2		70	67	64	60	57	54	50	44	36	25
	4BPT8/14-P	2.2	3		82	78	75	70	66	63	58	52	42	29
	4BPT8/18-P	3	4		105	101	96	91	85	80	75	67	55	38
	4BPT8/22-P	4	5.5		129	123	117	111	104	98	91	82	67	46
	4BPT8/25-P	4	5.5		146	140	133	126	118	112	104	93	76	52
	4BPT8/30-P	5.5	7.5		176	168	160	151	142	134	124	111	91	63
	4BPT8/34-P	5.5	7.5		199	190	181	171	161	152	141	126	103	71
